1 x Metaalplaatschroef RVS A2 cilindrische kop split 4.2X9.5
1 x Metaalplaatschroef RVS A2 cilindrische kop split 4.2X9.5
1 x Metaalplaatschroef RVS A2 cilindrische kop split 4.2X9.5
1 x Metaalplaatschroef RVS A2 cilindrische kop...
1 x Metaalplaatschroef RVS A2 cilindrische kop...
1 x Metaalplaatschroef RVS A2 cilindrische kop...

1 x Metaalplaatschroef RVS A2 cilindrische kop split 4.2X9.5

8312800918_1
Op voorraad 17 stuks
€ 5,14 incl. BTW
Prijzen verlagen door hoeveelheid
Aantal stuks 1 10 30 200
Kavelprijs BTW inbegrepen € 5,14 € 10,23 € 12,34 € 13,31

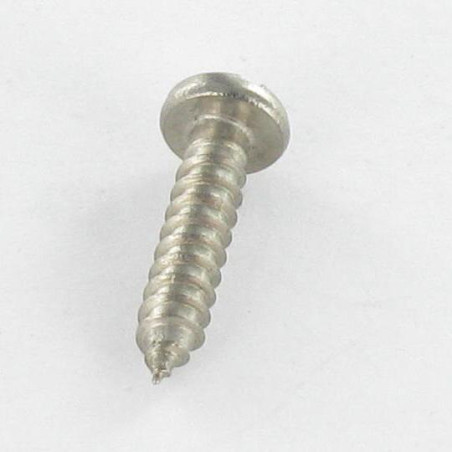

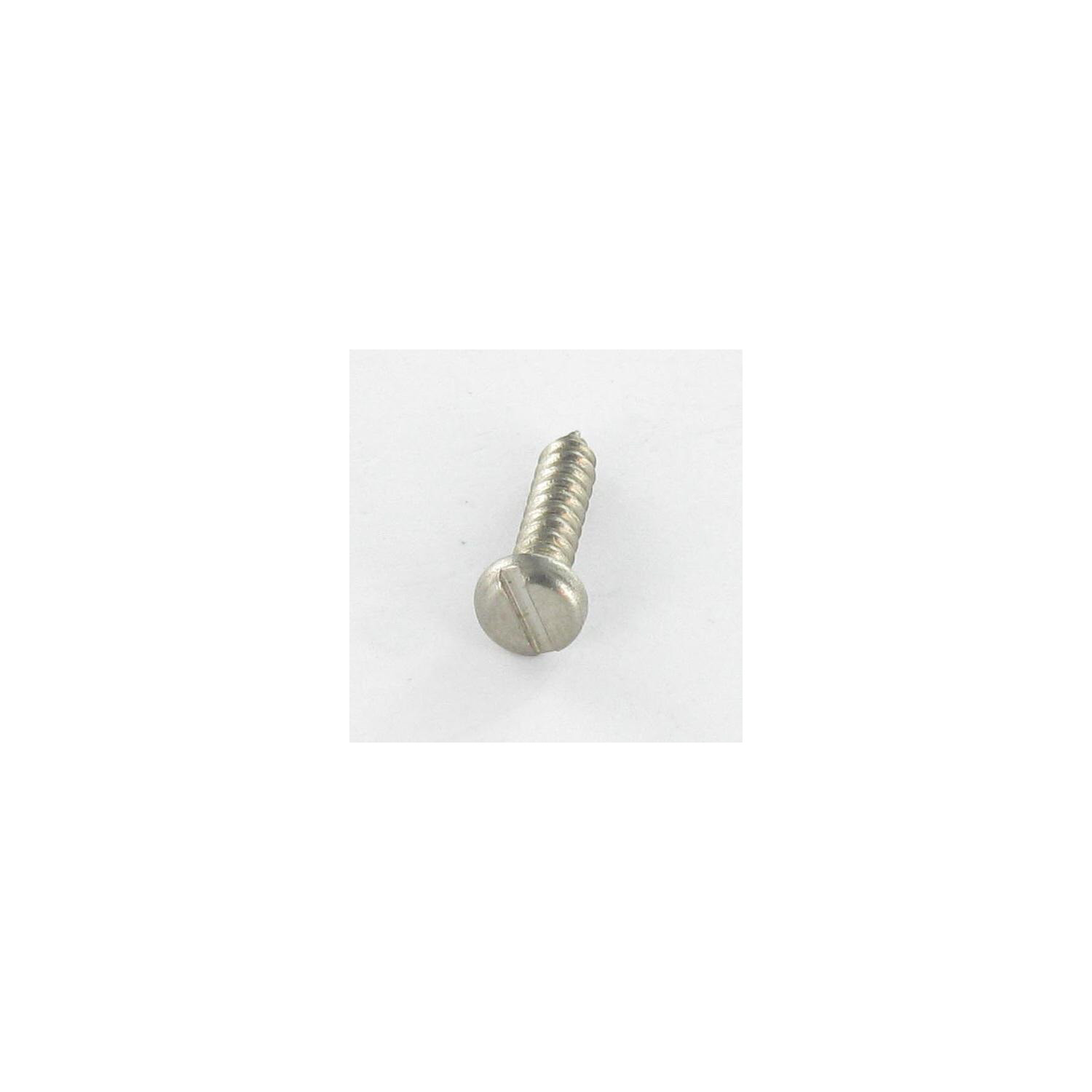

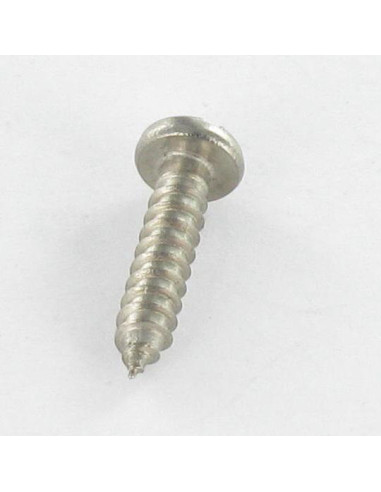

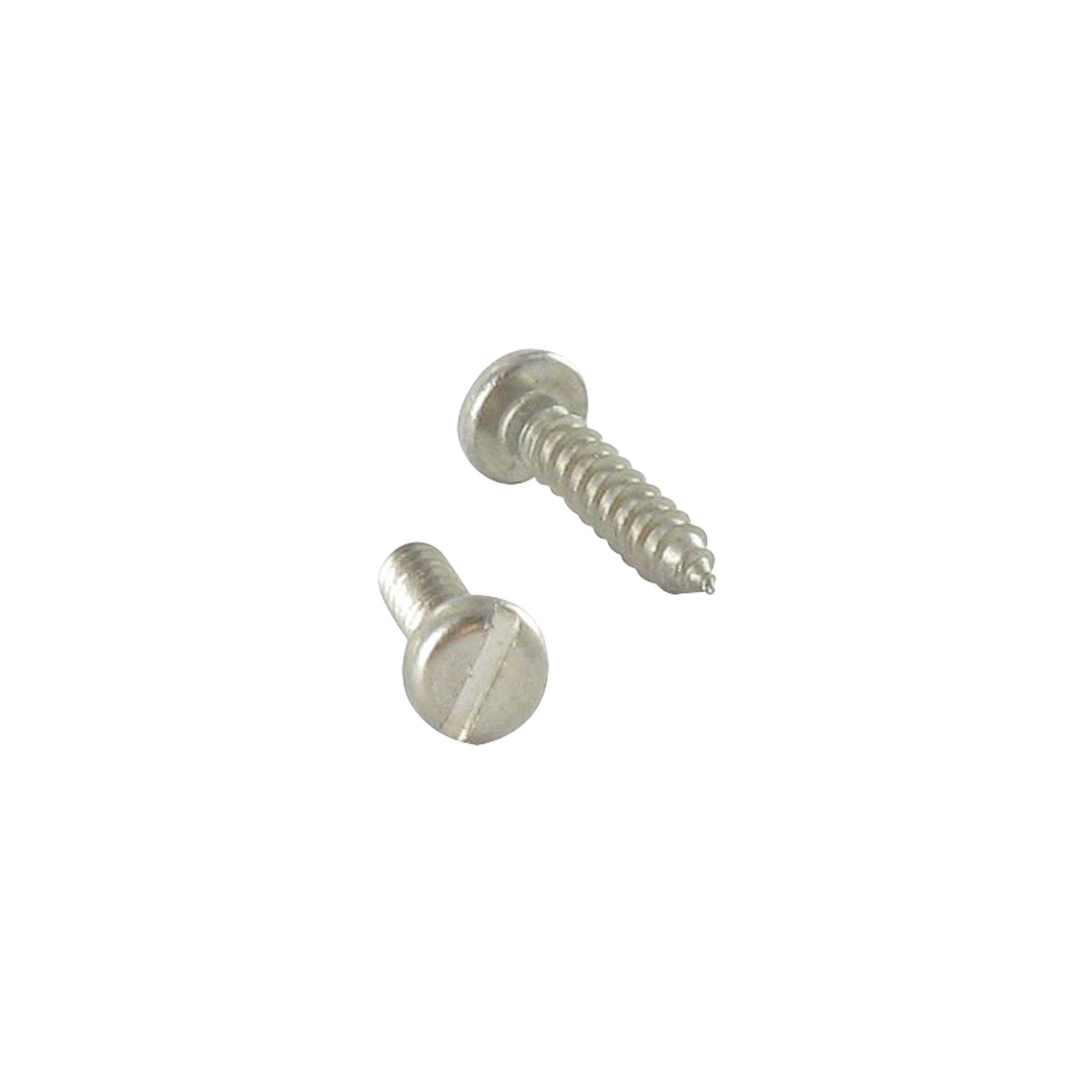

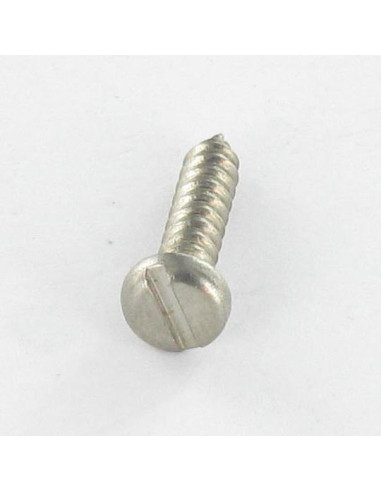

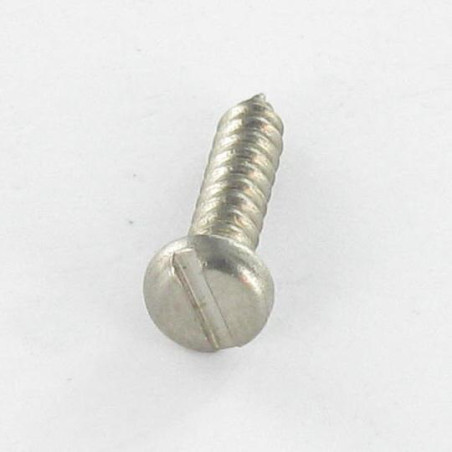

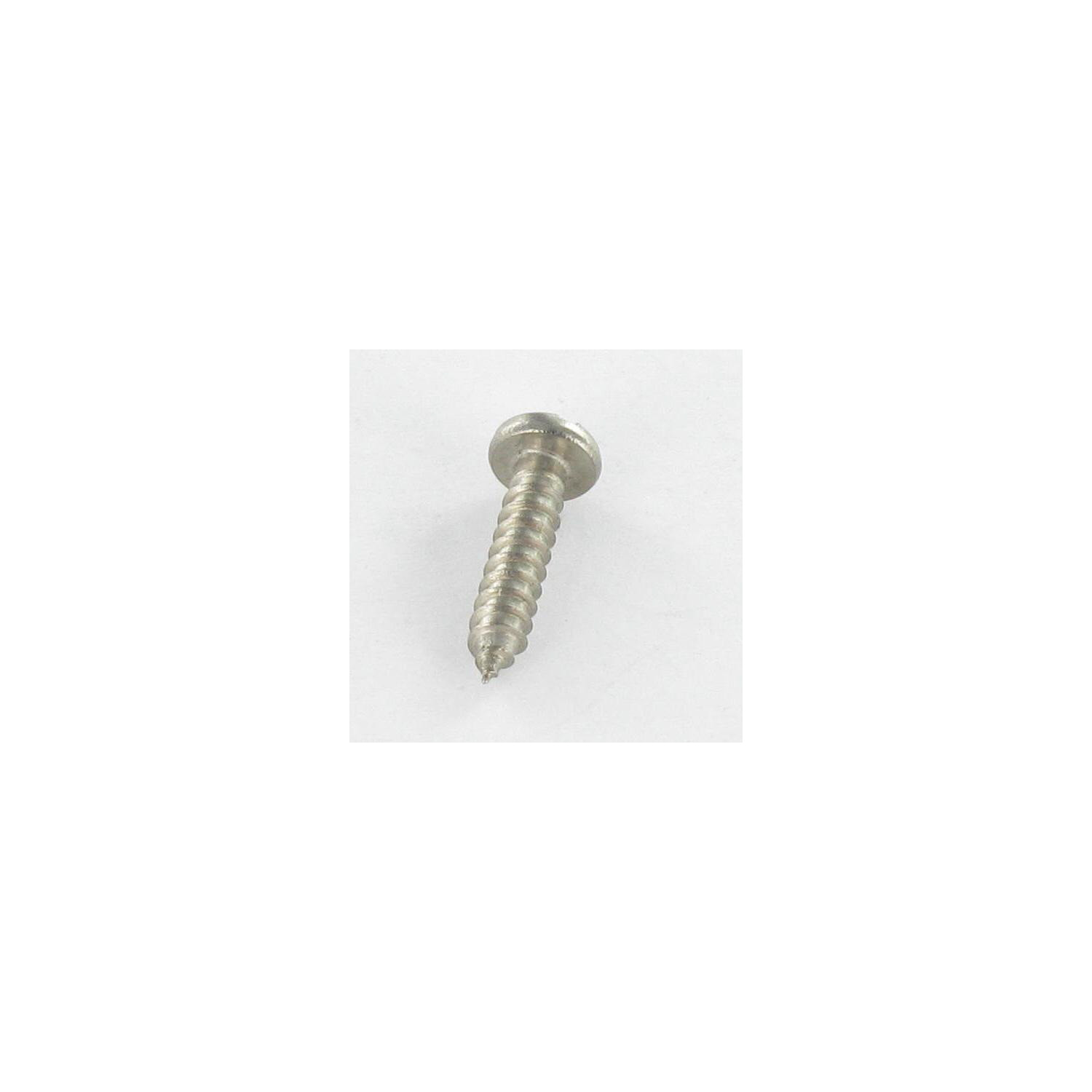

DIN 7971,VS3409 - Metaalplaatschroef RVS A2 cilindrische kop split 4.2X9.5
Verpakking
  • 1 stuk
  • 10 stuks
  • 30 stuks
  • 200 stuks

Bekijk alle beschikbare afmetingen in deze serie Afmetingen weergegeven in millimeters (mm)

diameter
4.2
lengte
9.5
Materiaal
RVS RVS A2
KLEUR
Grijs
Boorgat
Split
Producten
Metaalplaatschroef
Subproductfamilie
Cilinderkop
Norm
DIN 7971,VS3409
Gewicht per stuk
1.26 GR
17 stuks
3663072205789
Metaalplaatschroef RVS A2 cilindrische kop split 4.2X9.5
Diameter = 4.2, Lengte = 9.5, Materiaal = RVS A2, Boorgat = Split, Norm = DIN 7971,VS3409, Producten = Metaalplaatschroef


Maatvoering (in mm)
Spoor nummer 4 6 7 8 10 12 14
Diameter 2.9 3.5 3.9 4.2 4.8 5.5 6.3
Niet 1.1 1.3 1.3 1.4 1.6 1.8 1.8
kop diameter 5.6 6.9 7.5 8.2 9.5 10.8 12.5
Kop dikte 1.75 2.1 2.25 2.45 2.8 3.2 3.65
Sleuf breedte 0.8 1 1 1.2 1.2 1.6 1.6

ANDERE REFERENTIES : 624014,2X9,5 TCF39X95I 3663072205789
