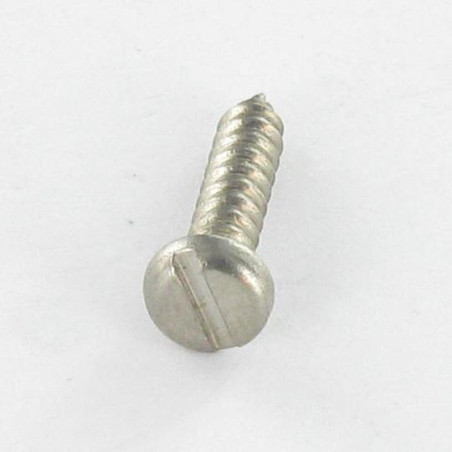

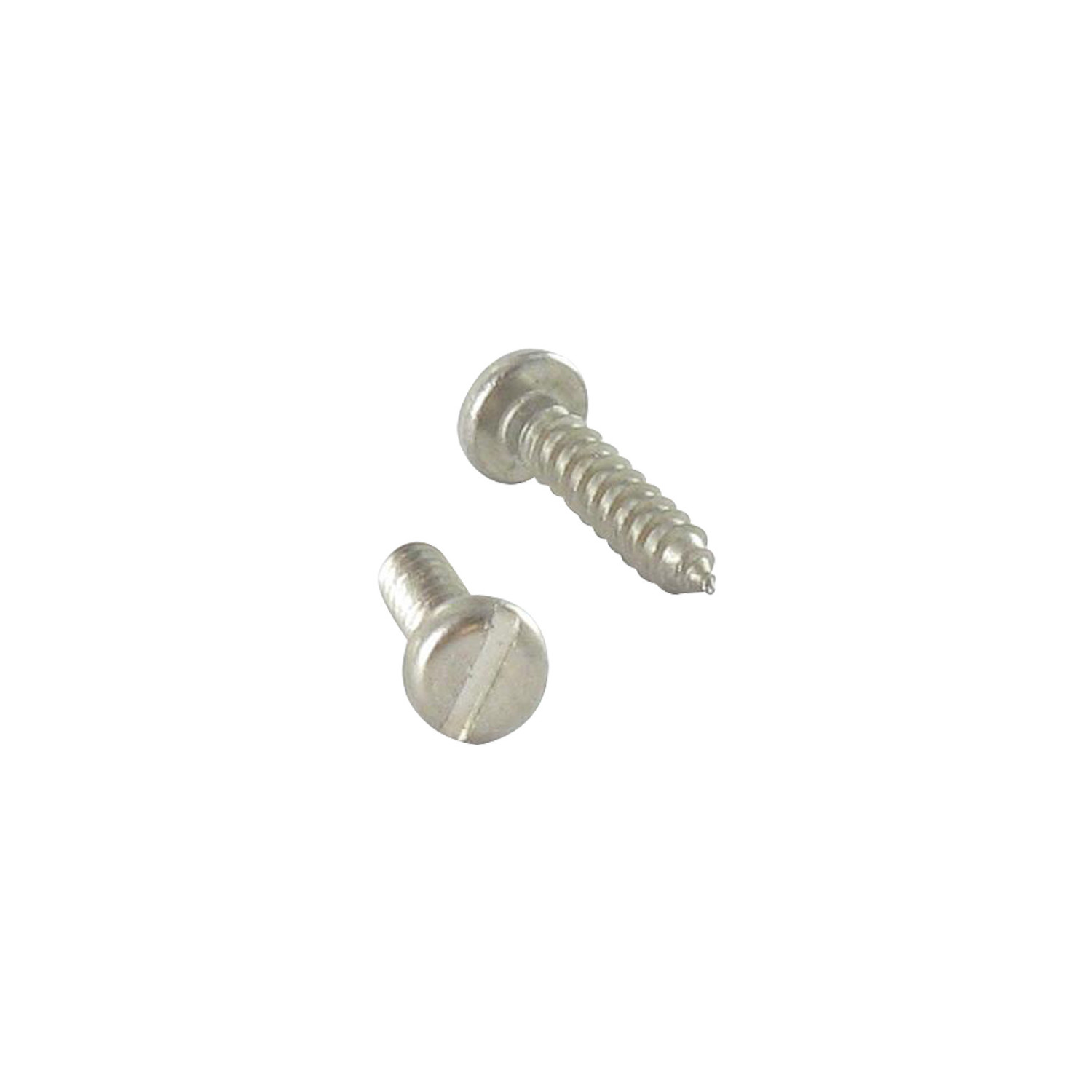

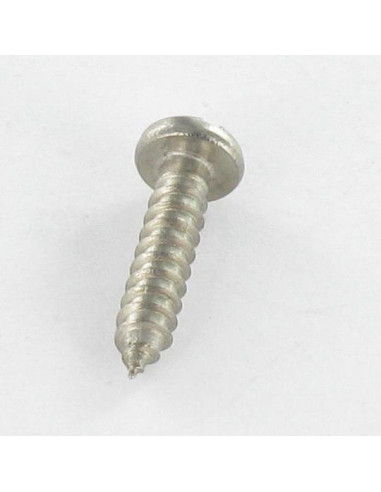

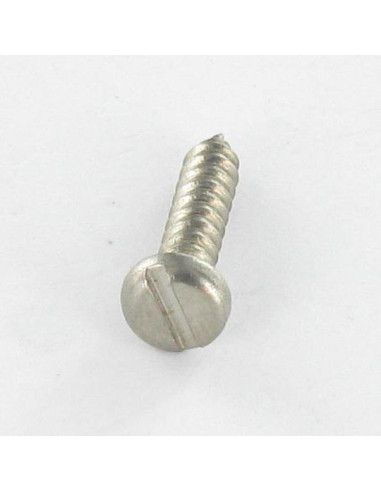

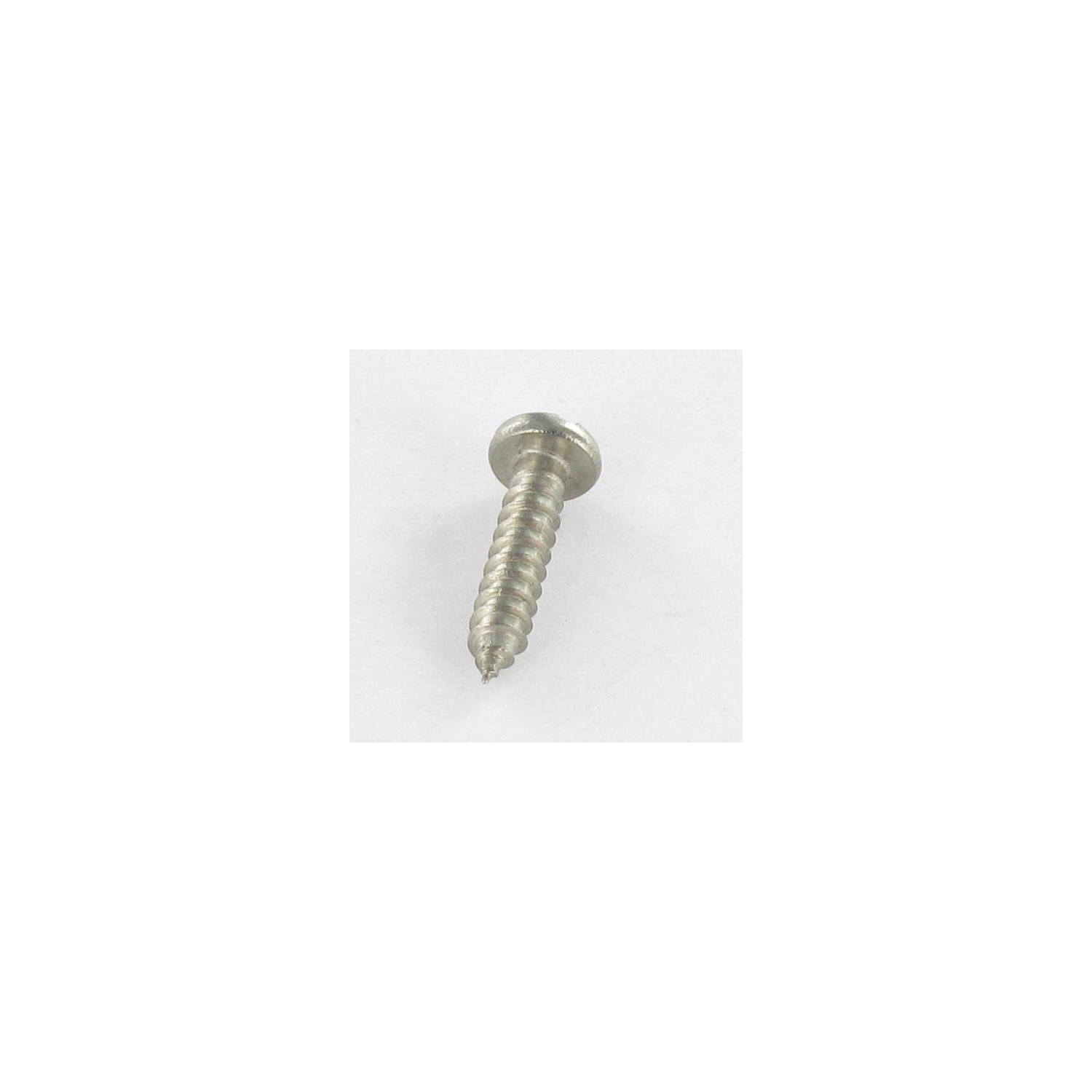

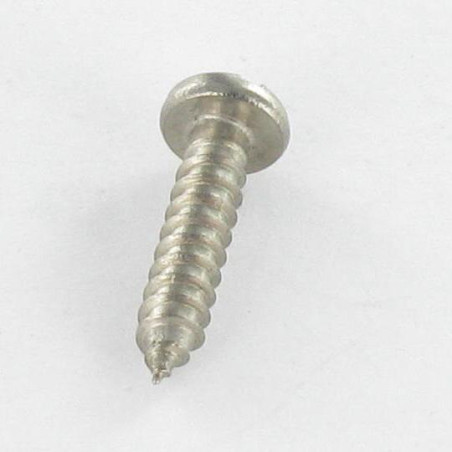

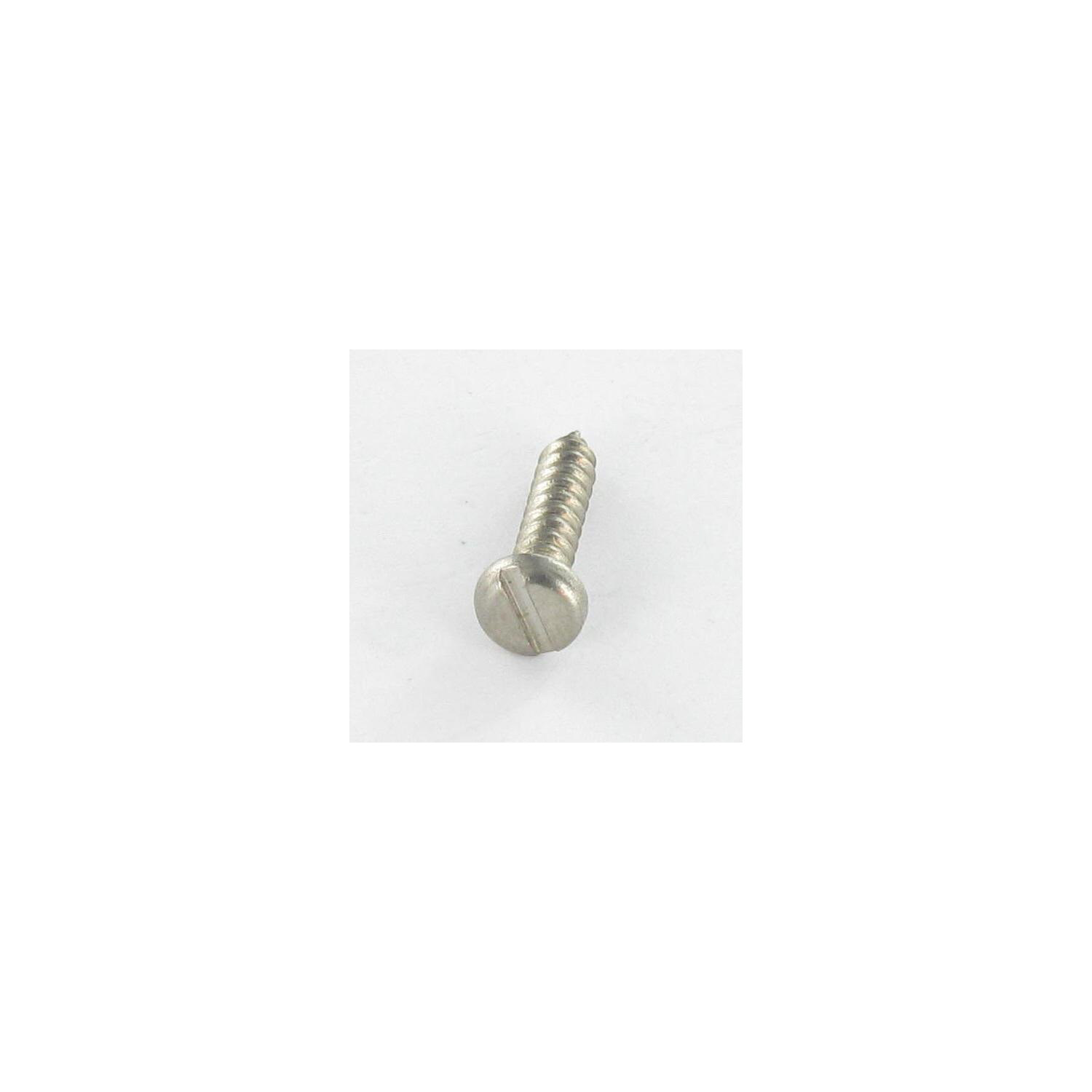

1 x Metaalplaatschroef RVS A2 cilindrische kop split 4.2X19
1 x Metaalplaatschroef RVS A2 cilindrische kop split 4.2X19
1 x Metaalplaatschroef RVS A2 cilindrische kop split 4.2X19
1 x Metaalplaatschroef RVS A2 cilindrische kop...
1 x Metaalplaatschroef RVS A2 cilindrische kop...
1 x Metaalplaatschroef RVS A2 cilindrische kop...

1 x Metaalplaatschroef RVS A2 cilindrische kop split 4.2X19

8312801918_1
Op voorraad 11124 stuks
€ 5,14 incl. BTW
Prijzen verlagen door hoeveelheid
Aantal stuks 1 10 30 200
Kavelprijs BTW inbegrepen € 5,14 € 10,23 € 12,34 € 13,31
DIN 7971,VS3409 - Metaalplaatschroef RVS A2 cilindrische kop split 4.2X19
Verpakking
  • 1 stuk
  • 10 stuks
  • 30 stuks
  • 200 stuks

Bekijk alle beschikbare afmetingen in deze serie Afmetingen weergegeven in millimeters (mm)

diameter
4.2
lengte
19
Materiaal
RVS RVS A2
KLEUR
Grijs
Boorgat
Split
Producten
Metaalplaatschroef
Subproductfamilie
Cilinderkop
Norm
DIN 7971,VS3409
Gewicht per stuk
1,92 GR
11124 stuks
3663072150782
Metaalplaatschroef RVS A2 cilindrische kop split 4.2X19
Diameter = 4.2, Lengte = 19, Materiaal = RVS A2, Boorgat = Split, Norm = DIN 7971,VS3409, Producten = Metaalplaatschroef


Maatvoering (in mm)
Spoor nummer 4 6 7 8 10 12 14
Diameter 2.9 3.5 3.9 4.2 4.8 5.5 6.3
Niet 1.1 1.3 1.3 1.4 1.6 1.8 1.8
kop diameter 5.6 6.9 7.5 8.2 9.5 10.8 12.5
Kop dikte 1.75 2.1 2.25 2.45 2.8 3.2 3.65
Sleuf breedte 0.8 1 1 1.2 1.2 1.6 1.6

ANDERE REFERENTIES : 624014,2X19 50015489 4101432 600403 600403 A02019 3663072150782
