1 x Metaalplaatschroef RVS A2 cilindrische kop split 4.8X32
1 x Metaalplaatschroef RVS A2 cilindrische kop split 4.8X32
1 x Metaalplaatschroef RVS A2 cilindrische kop split 4.8X32
1 x Metaalplaatschroef RVS A2 cilindrische kop...
1 x Metaalplaatschroef RVS A2 cilindrische kop...
1 x Metaalplaatschroef RVS A2 cilindrische kop...

1 x Metaalplaatschroef RVS A2 cilindrische kop split 4.8X32

8312103118_1
Op voorraad 241 stuks
€ 5,14 incl. BTW
Prijzen verlagen door hoeveelheid
Aantal stuks 1 10 30 200
Kavelprijs BTW inbegrepen € 5,14 € 10,23 € 12,34 € 17,79

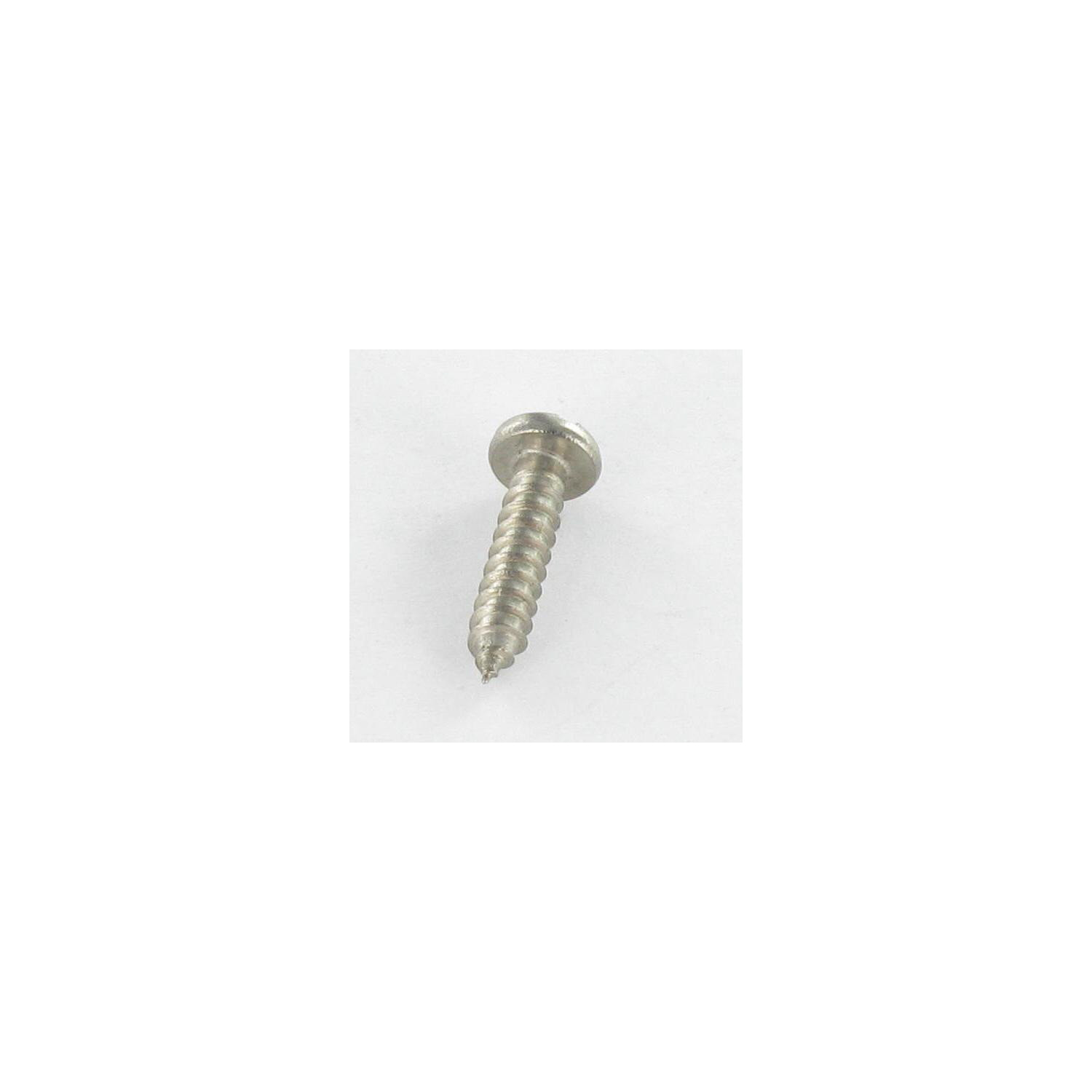

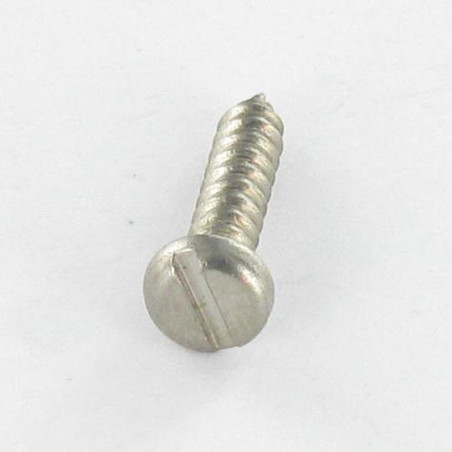

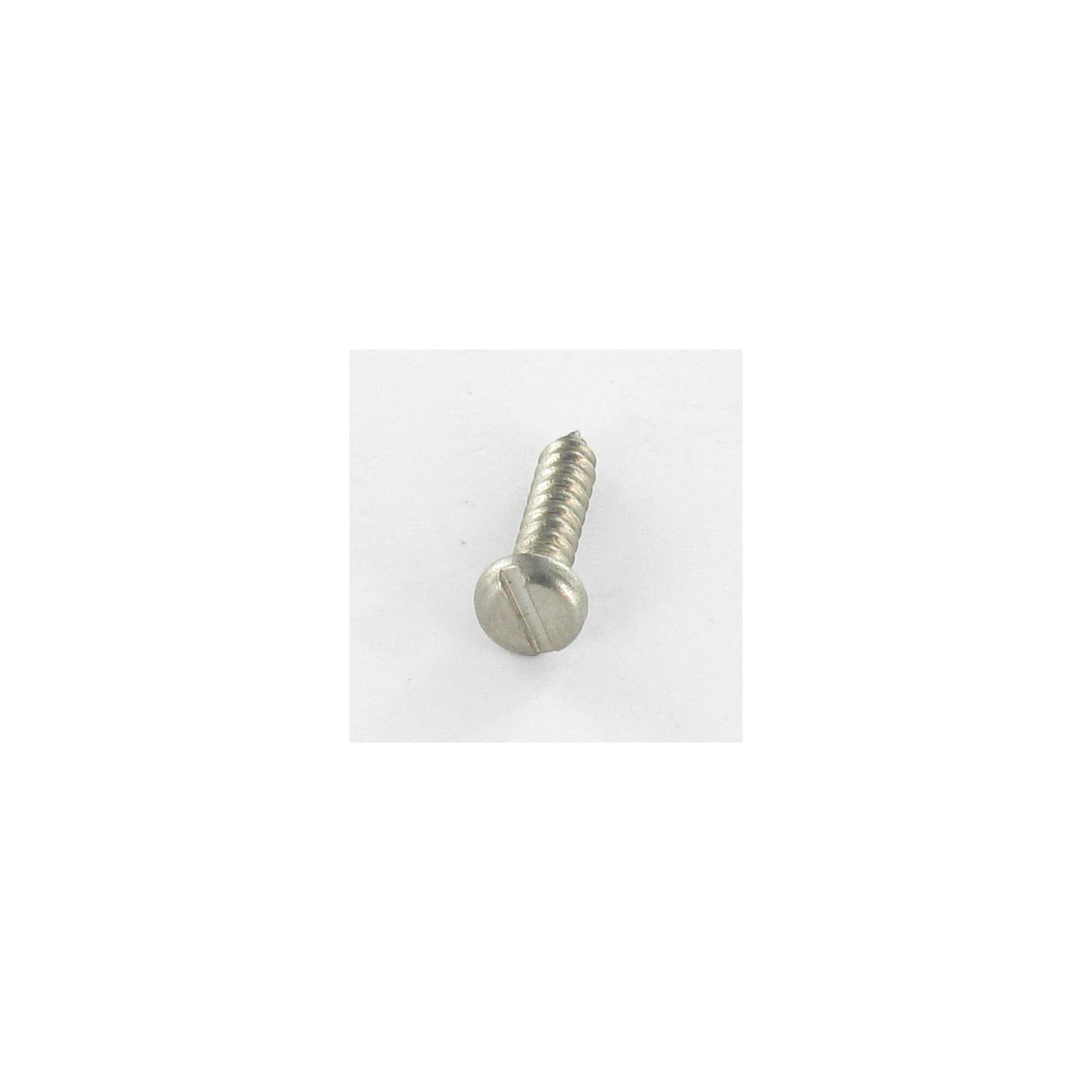

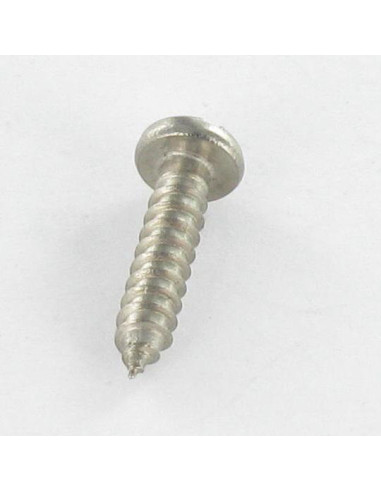

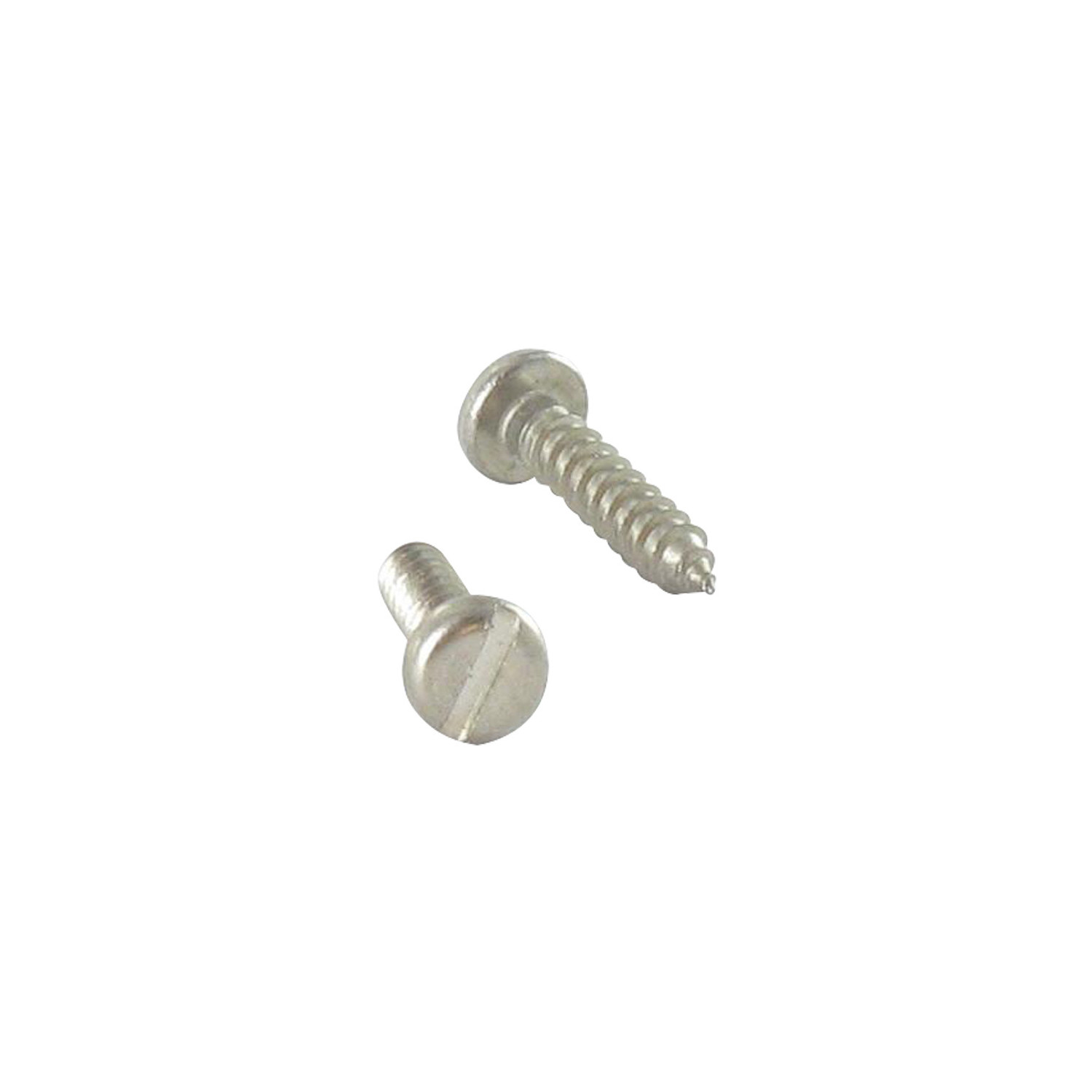

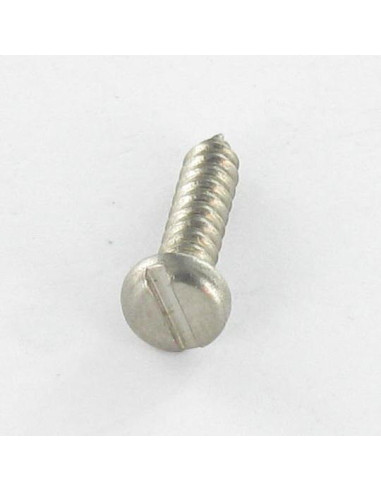

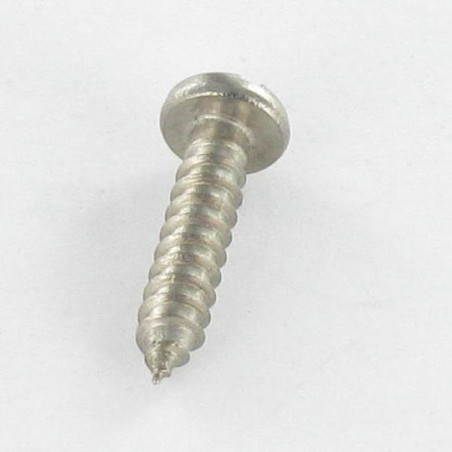

DIN 7971,VS3409 - Metaalplaatschroef RVS A2 cilindrische kop split 4.8X32
Verpakking
  • 1 stuk
  • 10 stuks
  • 30 stuks
  • 200 stuks

Bekijk alle beschikbare afmetingen in deze serie Afmetingen weergegeven in millimeters (mm)

diameter
Klasse 4.8
lengte
32
Materiaal
RVS RVS A2
KLEUR
Grijs
Boorgat
Split
Producten
Metaalplaatschroef
Subproductfamilie
Cilinderkop
Norm
DIN 7971,VS3409
Gewicht per stuk
4.2 GR
241 stuks
3663072150683
Metaalplaatschroef RVS A2 cilindrische kop split 4.8X32
Diameter = Klasse 4.8, Lengte = 32, Materiaal = RVS A2, Boorgat = Split, Norm = DIN 7971,VS3409, Producten = Metaalplaatschroef


Maatvoering (in mm)
Spoor nummer 4 6 7 8 10 12 14
Diameter 2.9 3.5 3.9 4.2 4.8 5.5 6.3
Niet 1.1 1.3 1.3 1.4 1.6 1.8 1.8
kop diameter 5.6 6.9 7.5 8.2 9.5 10.8 12.5
Kop dikte 1.75 2.1 2.25 2.45 2.8 3.2 3.65
Sleuf breedte 0.8 1 1 1.2 1.2 1.6 1.6

ANDERE REFERENTIES : 624014,8X31, 50015490 61062248032 600509 330508 3663072150683
