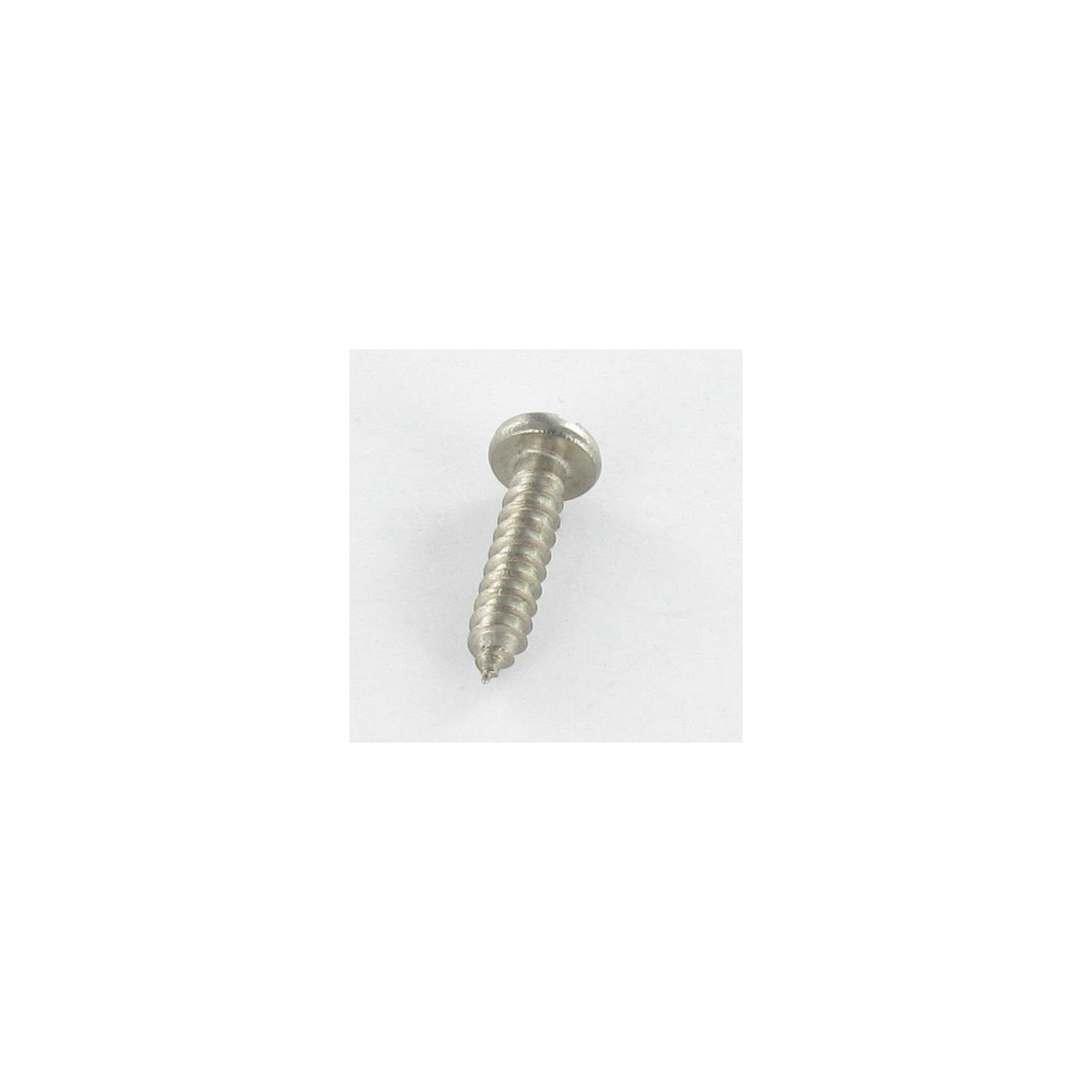

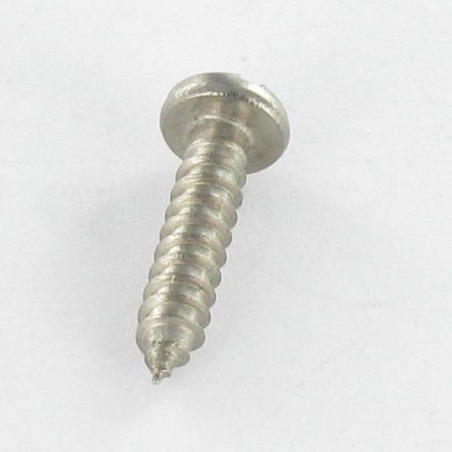

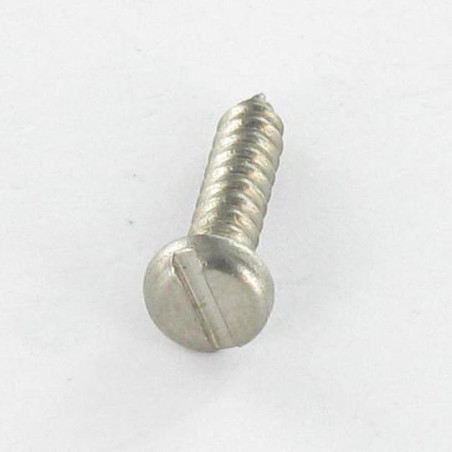

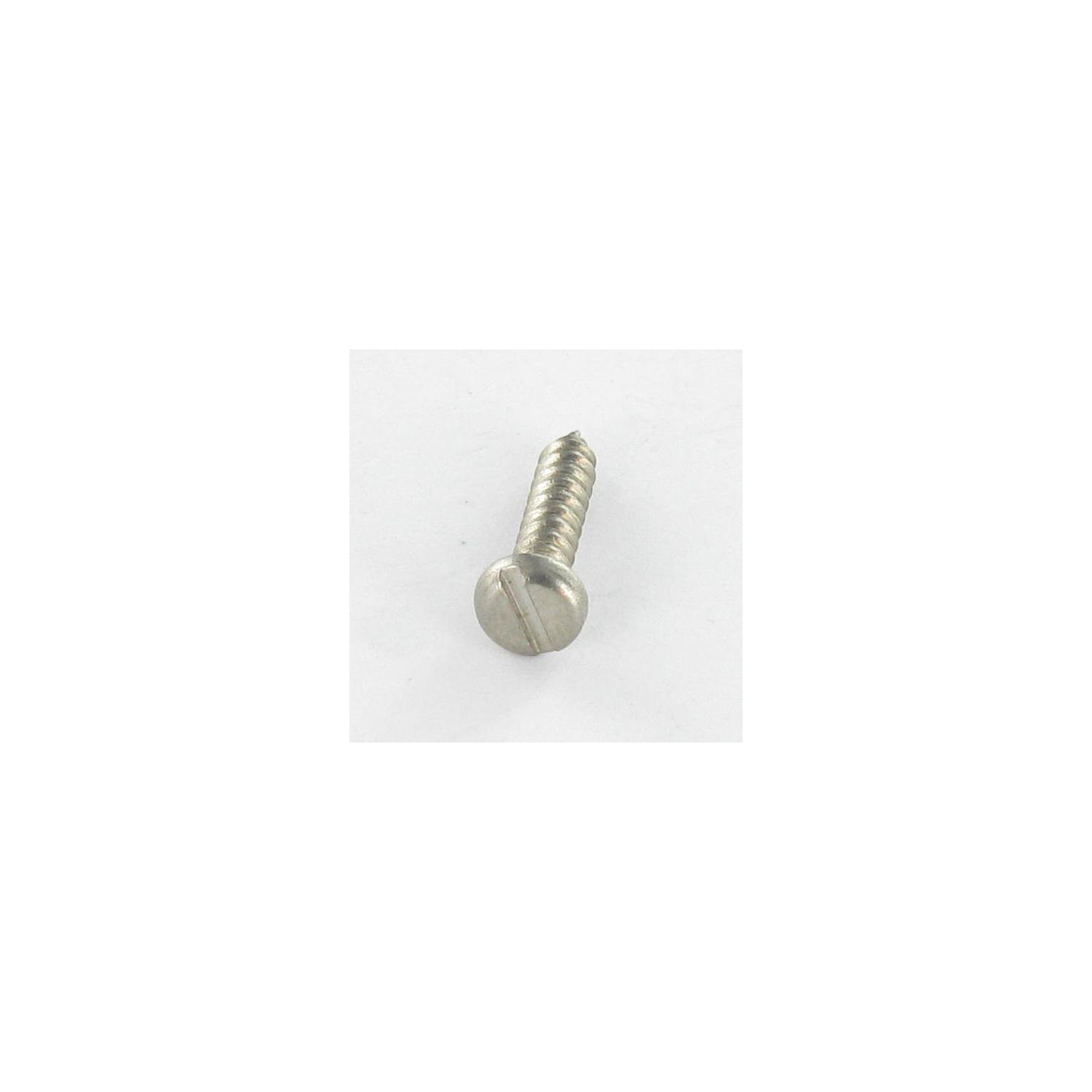

1 x Metaalplaatschroef RVS A2 cilindrische kop split 3.9X16
1 x Metaalplaatschroef RVS A2 cilindrische kop split 3.9X16
1 x Metaalplaatschroef RVS A2 cilindrische kop split 3.9X16

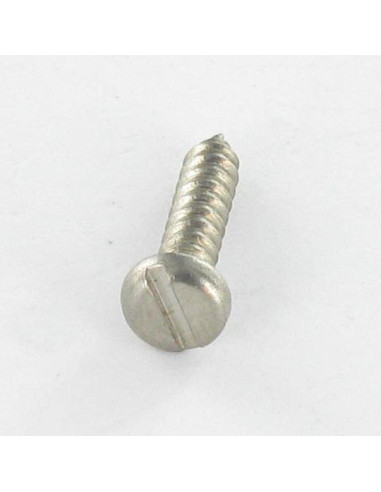

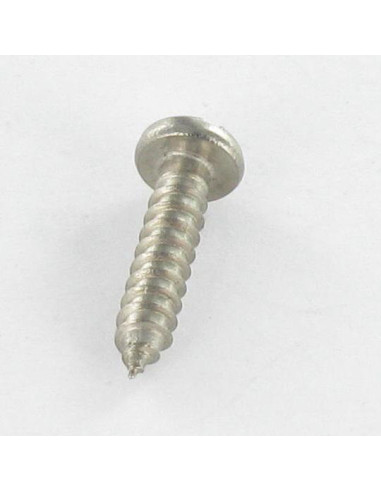

1 x Metaalplaatschroef RVS A2 cilindrische kop...
1 x Metaalplaatschroef RVS A2 cilindrische kop...
1 x Metaalplaatschroef RVS A2 cilindrische kop...

1 x Metaalplaatschroef RVS A2 cilindrische kop split 3.9X16

8312701518_1
Op voorraad 14383 stuks
€ 5,14 incl. BTW
Prijzen verlagen door hoeveelheid
Aantal stuks 1 10 30 200
Kavelprijs BTW inbegrepen € 5,14 € 10,23 € 12,34 € 13,31
DIN 7971,VS3409 - Metaalplaatschroef RVS A2 cilindrische kop split 3.9X16
Verpakking
  • 1 stuk
  • 10 stuks
  • 30 stuks
  • 200 stuks

Bekijk alle beschikbare afmetingen in deze serie Afmetingen weergegeven in millimeters (mm)

diameter
3.9
lengte
16
Materiaal
RVS RVS A2
KLEUR
Grijs
Boorgat
Split
Producten
Metaalplaatschroef
Subproductfamilie
Cilinderkop
Norm
DIN 7971,VS3409
Gewicht per stuk
1.48 GR
14383 stuks
3663072150775
Metaalplaatschroef RVS A2 cilindrische kop split 3.9X16
Diameter = 3.9, Lengte = 16, Materiaal = RVS A2, Boorgat = Split, Norm = DIN 7971,VS3409, Producten = Metaalplaatschroef


Maatvoering (in mm)
Spoor nummer 4 6 7 8 10 12 14
Diameter 2.9 3.5 3.9 4.2 4.8 5.5 6.3
Niet 1.1 1.3 1.3 1.4 1.6 1.8 1.8
kop diameter 5.6 6.9 7.5 8.2 9.5 10.8 12.5
Kop dikte 1.75 2.1 2.25 2.45 2.8 3.2 3.65
Sleuf breedte 0.8 1 1 1.2 1.2 1.6 1.6

ANDERE REFERENTIES : 624013,9X15, VIAINOX3.9X1 VIAINOX3.9X1 01500010 61062239017 400088 400088 31027 3663072150775
