1 x Metaalplaatschroef RVS A2 cilindrische kop split 3,9 x 9,5
1 x Metaalplaatschroef RVS A2 cilindrische kop split 3,9 x 9,5
1 x Metaalplaatschroef RVS A2 cilindrische kop split 3,9 x 9,5
1 x Metaalplaatschroef RVS A2 cilindrische kop...
1 x Metaalplaatschroef RVS A2 cilindrische kop...
1 x Metaalplaatschroef RVS A2 cilindrische kop...

1 x Metaalplaatschroef RVS A2 cilindrische kop split 3,9 x 9,5

8312700918_1
Op voorraad 931 stuks
€ 5,14 incl. BTW
Prijzen verlagen door hoeveelheid
Aantal stuks 1 10 30 200
Kavelprijs BTW inbegrepen € 5,14 € 10,23 € 12,34 € 13,31

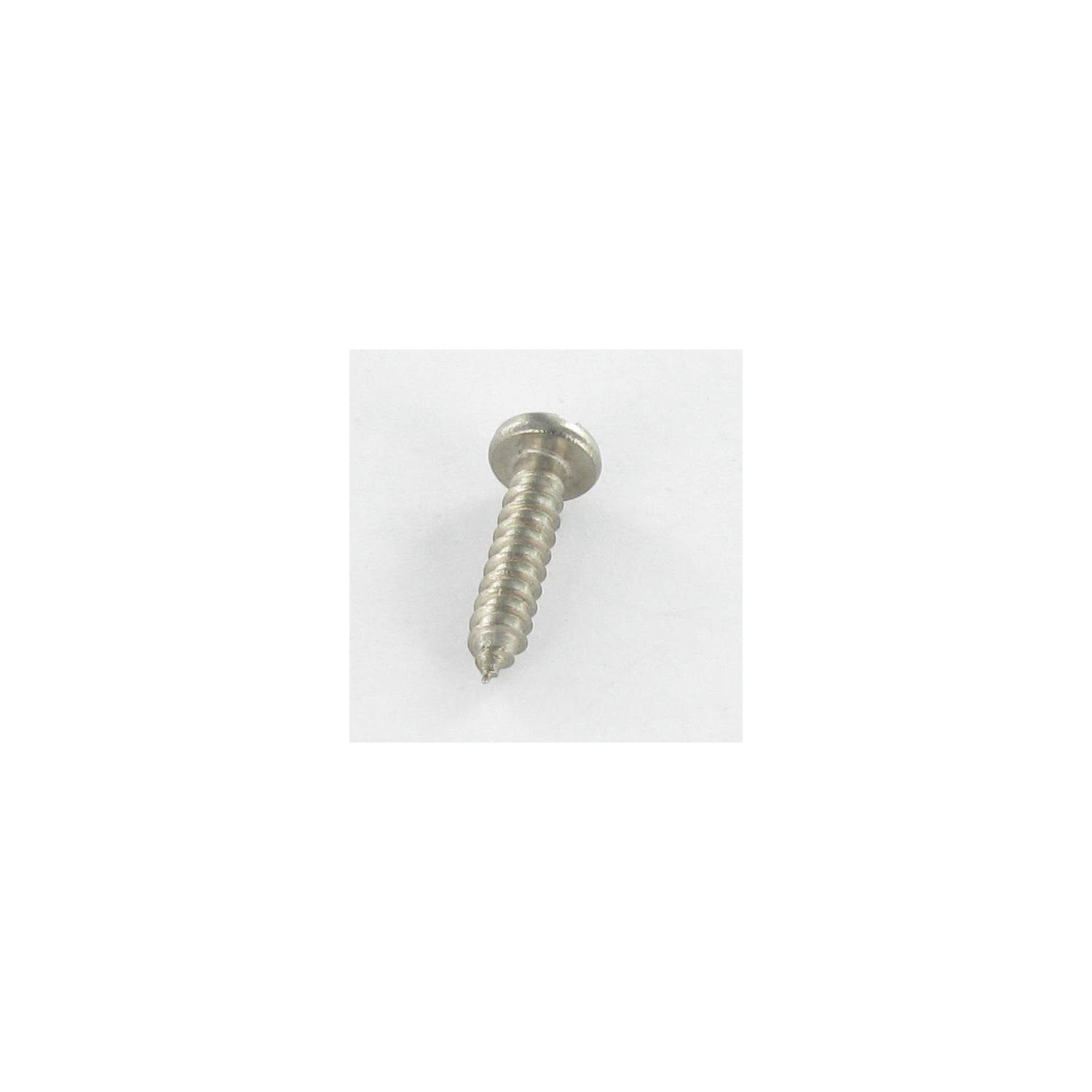

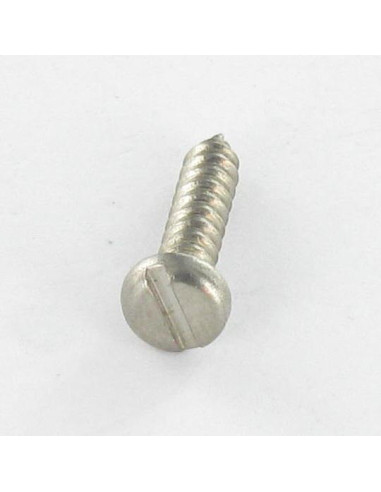

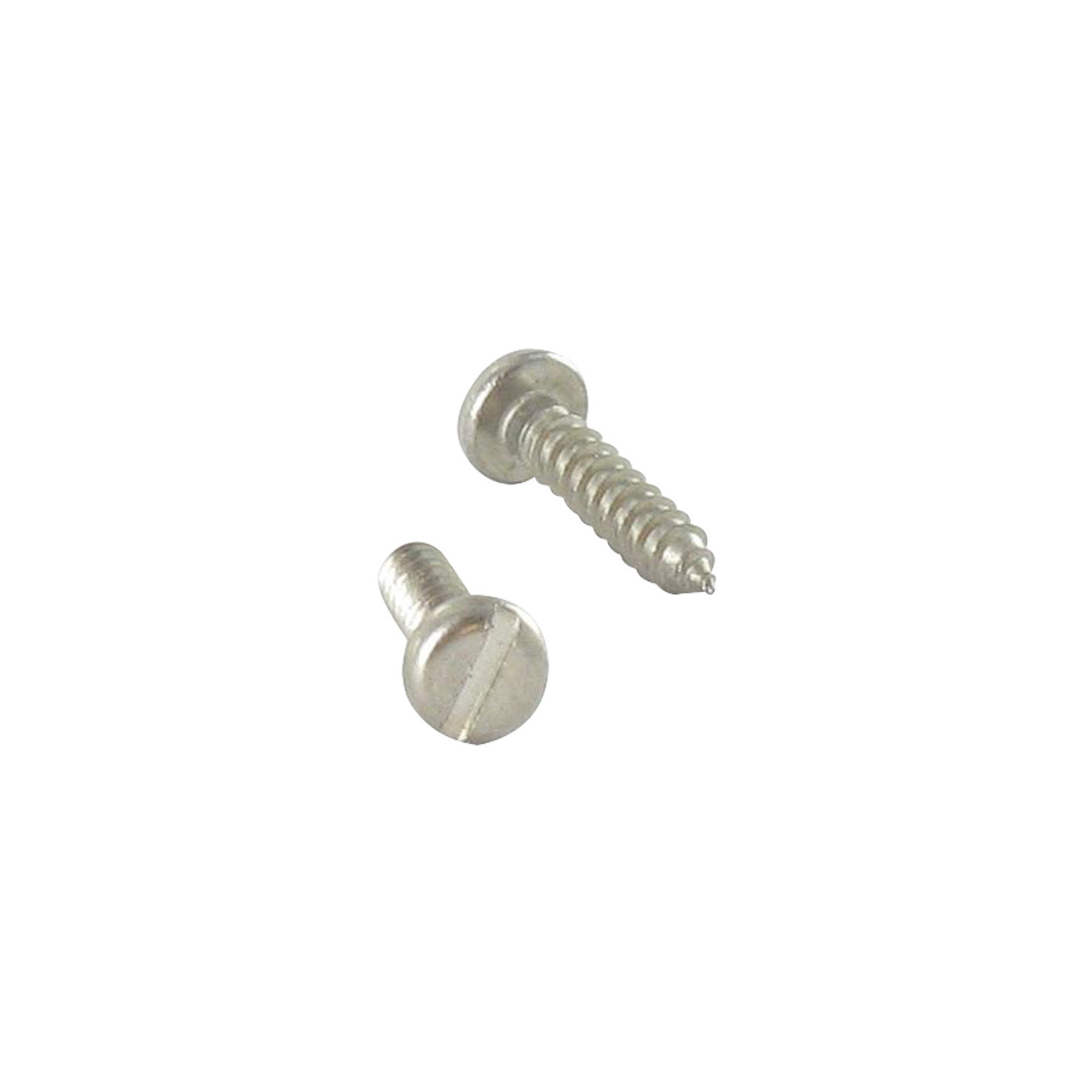

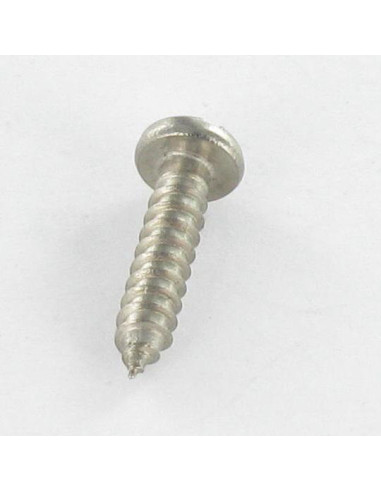

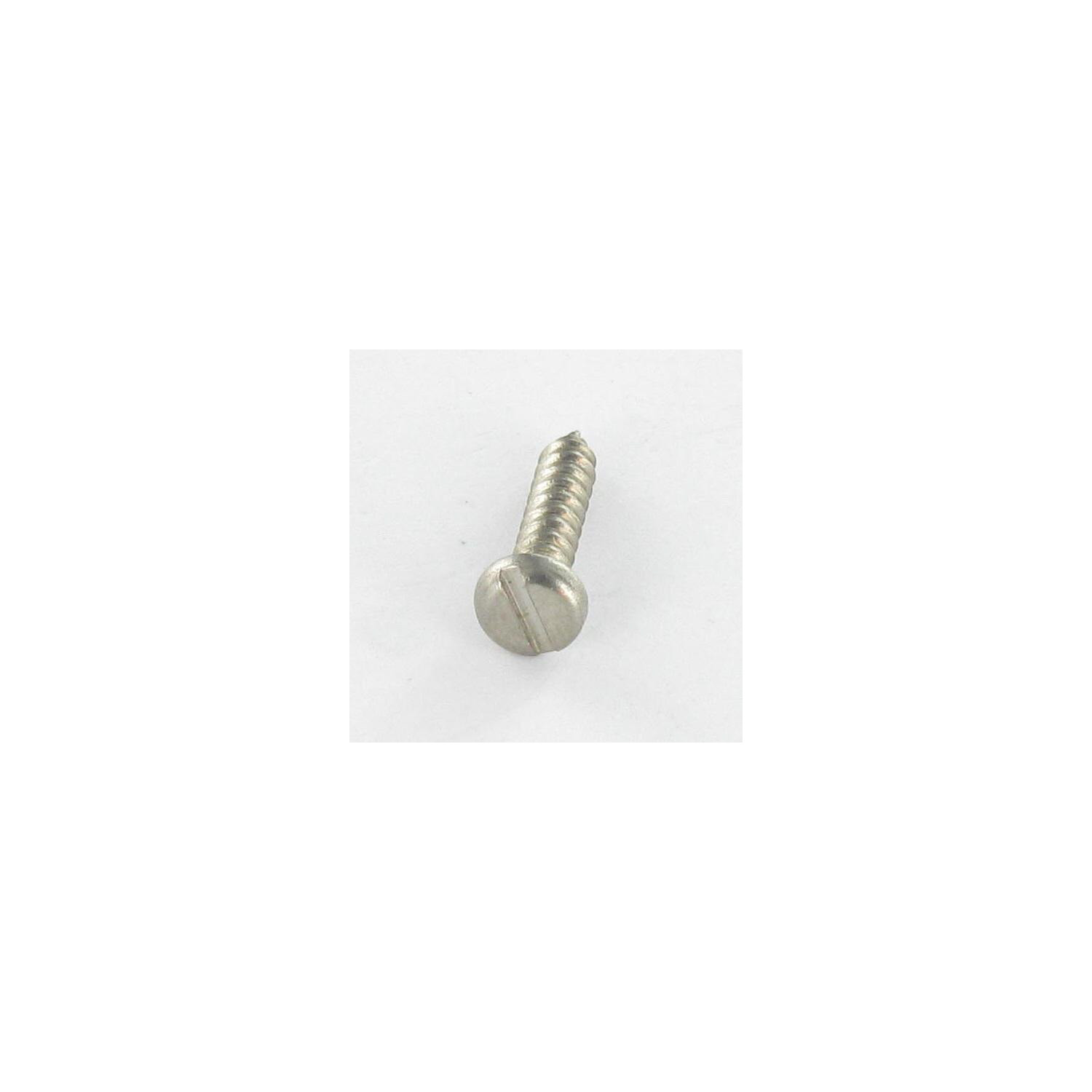

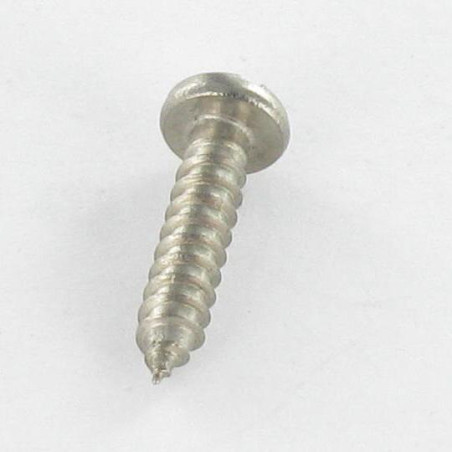

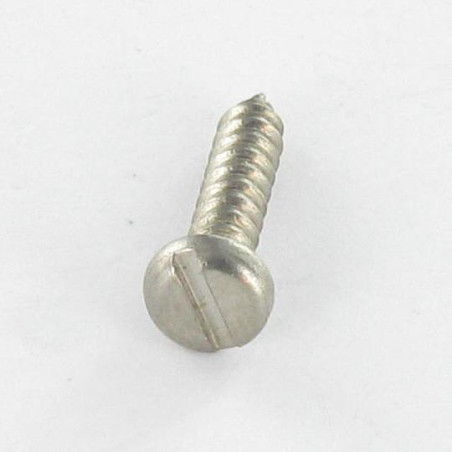

DIN 7971,VS3409 - Metaalplaatschroef RVS A2 cilindrische kop split 3,9 x 9,5
Verpakking
  • 1 stuk
  • 10 stuks
  • 30 stuks
  • 200 stuks

Bekijk alle beschikbare afmetingen in deze serie Afmetingen weergegeven in millimeters (mm)

diameter
3.9
lengte
9.5
Materiaal
RVS RVS A2
KLEUR
Grijs
Boorgat
Split
Producten
Metaalplaatschroef
Subproductfamilie
Cilinderkop
Norm
DIN 7971,VS3409
Gewicht per stuk
1.07 GR
931 stuks
3663072387454
Metaalplaatschroef RVS A2 cilindrische kop split 3,9 x 9,5
Diameter = 3.9, Lengte = 9.5, Materiaal = RVS A2, Boorgat = Split, Norm = DIN 7971,VS3409, Producten = Metaalplaatschroef


Maatvoering (in mm)
Spoor nummer 4 6 7 8 10 12 14
Diameter 2.9 3.5 3.9 4.2 4.8 5.5 6.3
Niet 1.1 1.3 1.3 1.4 1.6 1.8 1.8
kop diameter 5.6 6.9 7.5 8.2 9.5 10.8 12.5
Kop dikte 1.75 2.1 2.25 2.45 2.8 3.2 3.65
Sleuf breedte 0.8 1 1 1.2 1.2 1.6 1.6

ANDERE REFERENTIES : 624013,9X9,5 TCF39X95I VIS0335 400075 400075 9402628 330302 25250310 3663072387454
