1 x Zelfborende schroef cilindrische kop Phillips vierkant 4.8X19 SQ2+PH2 RVS A2

8329101918_1
Op voorraad 582 stuks
€ 5,14 incl. BTW
Prijzen verlagen door hoeveelheid
Aantal stuks 1 10 30 200
Kavelprijs BTW inbegrepen € 5,14 € 10,23 € 12,34 € 19,36

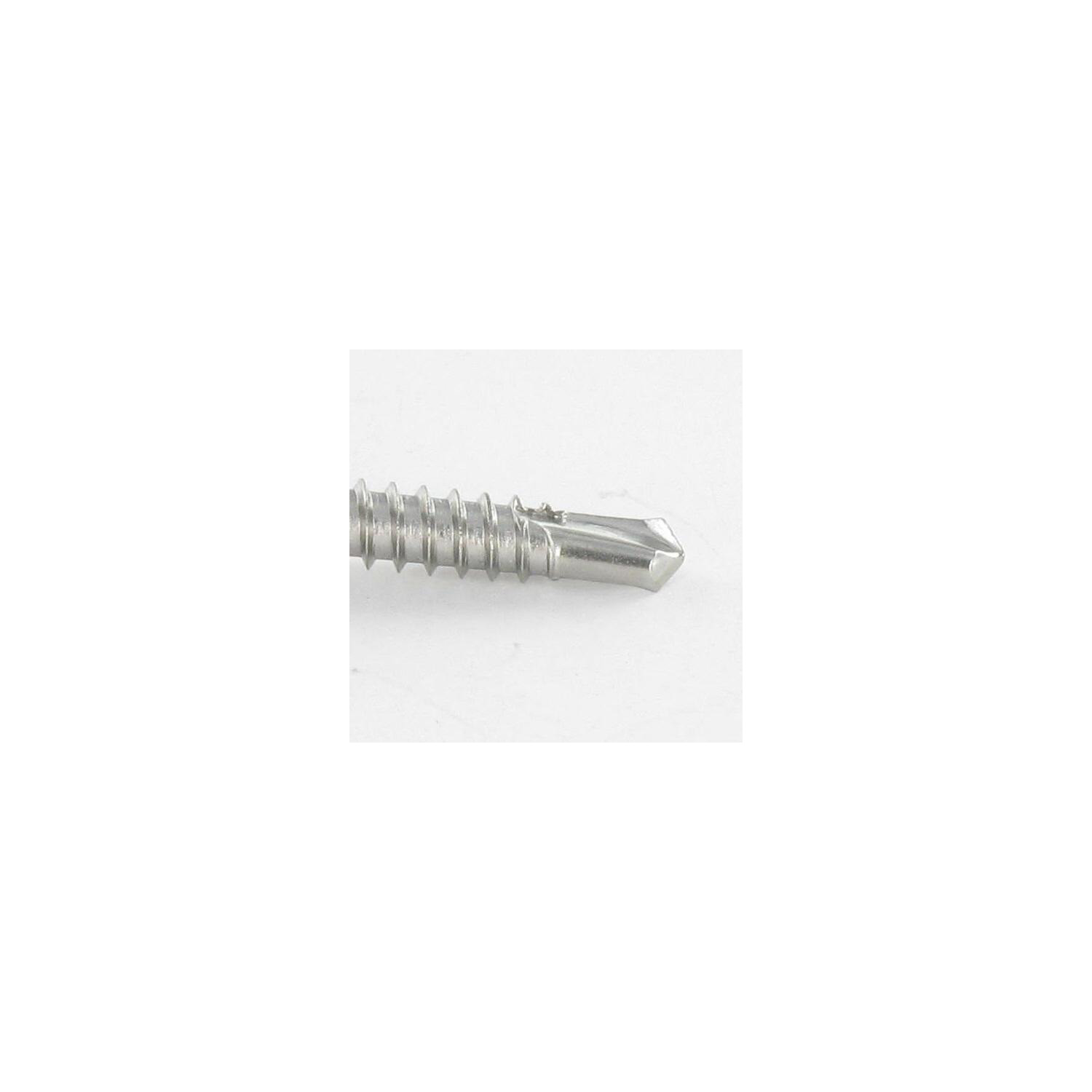

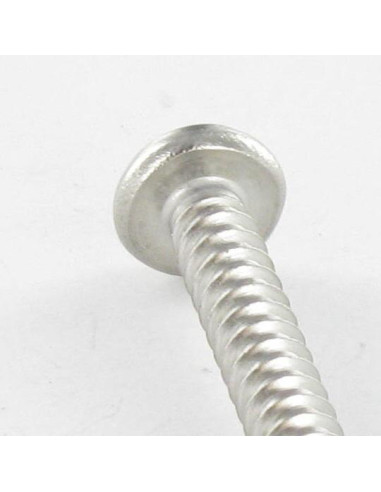

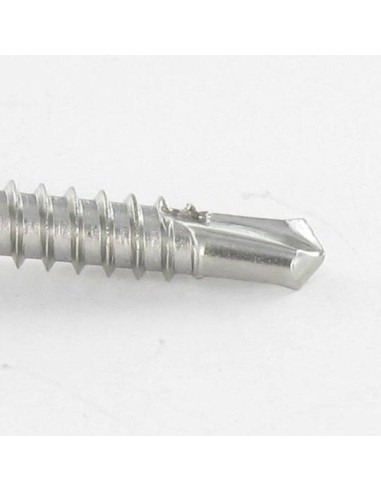

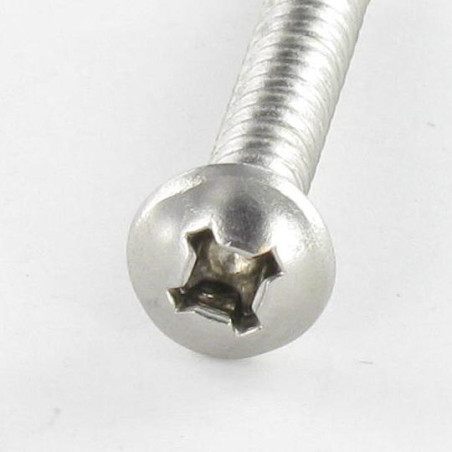

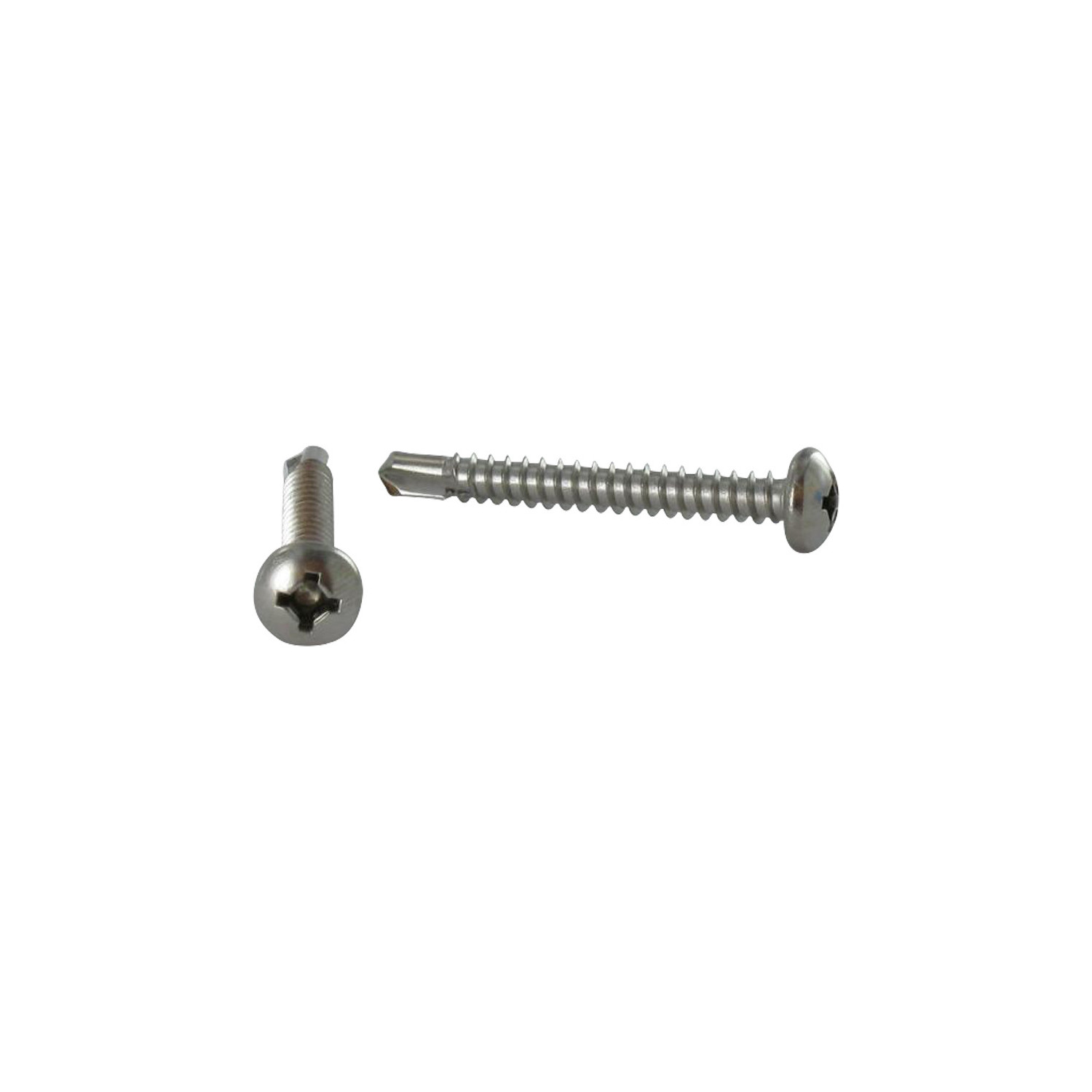

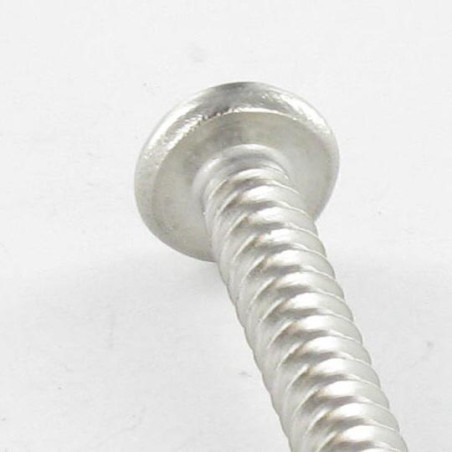

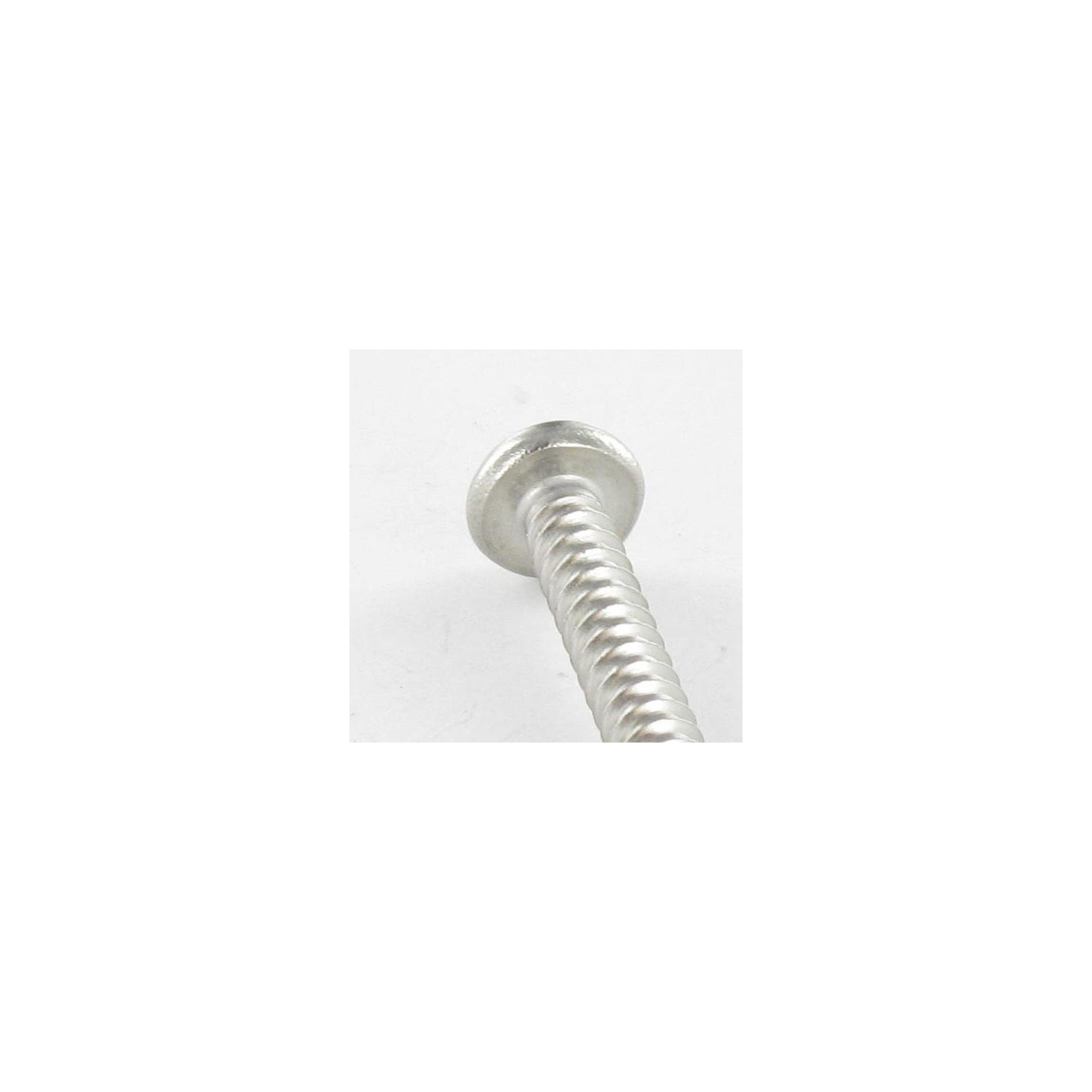

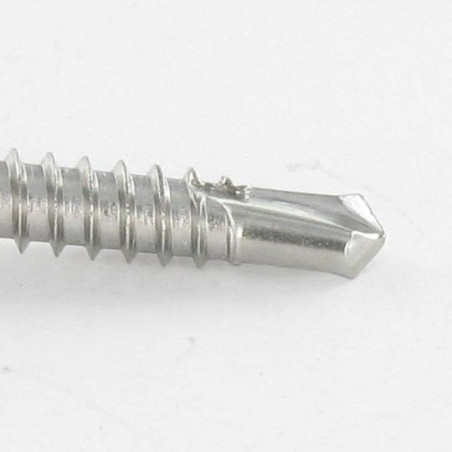

DIN 7504 N + CARR/PH,VS3124 - Zelfborende schroef cilindrische kop Phillips vierkant 4.8X19 SQ2+PH2 RVS A2

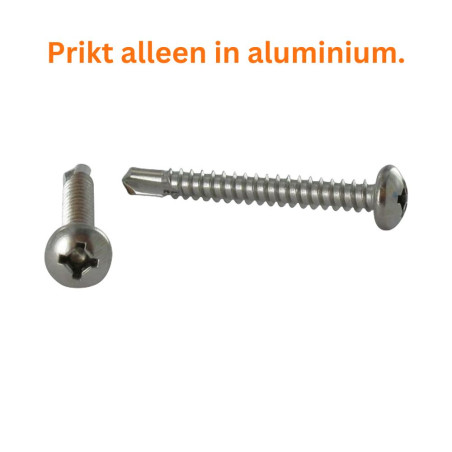

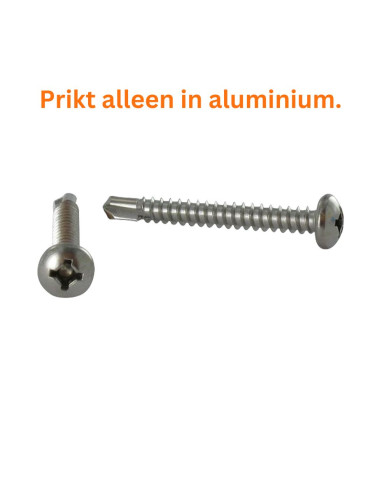

Prikt alleen door aluminium
Verpakking
  • 1 stuk
  • 10 stuks
  • 30 stuks
  • 200 stuks

Bekijk alle beschikbare afmetingen in deze serie Afmetingen weergegeven in millimeters (mm)

diameter
Klasse 4.8
lengte
19
Materiaal
RVS RVS A2
KLEUR
Grijs
Boorgat

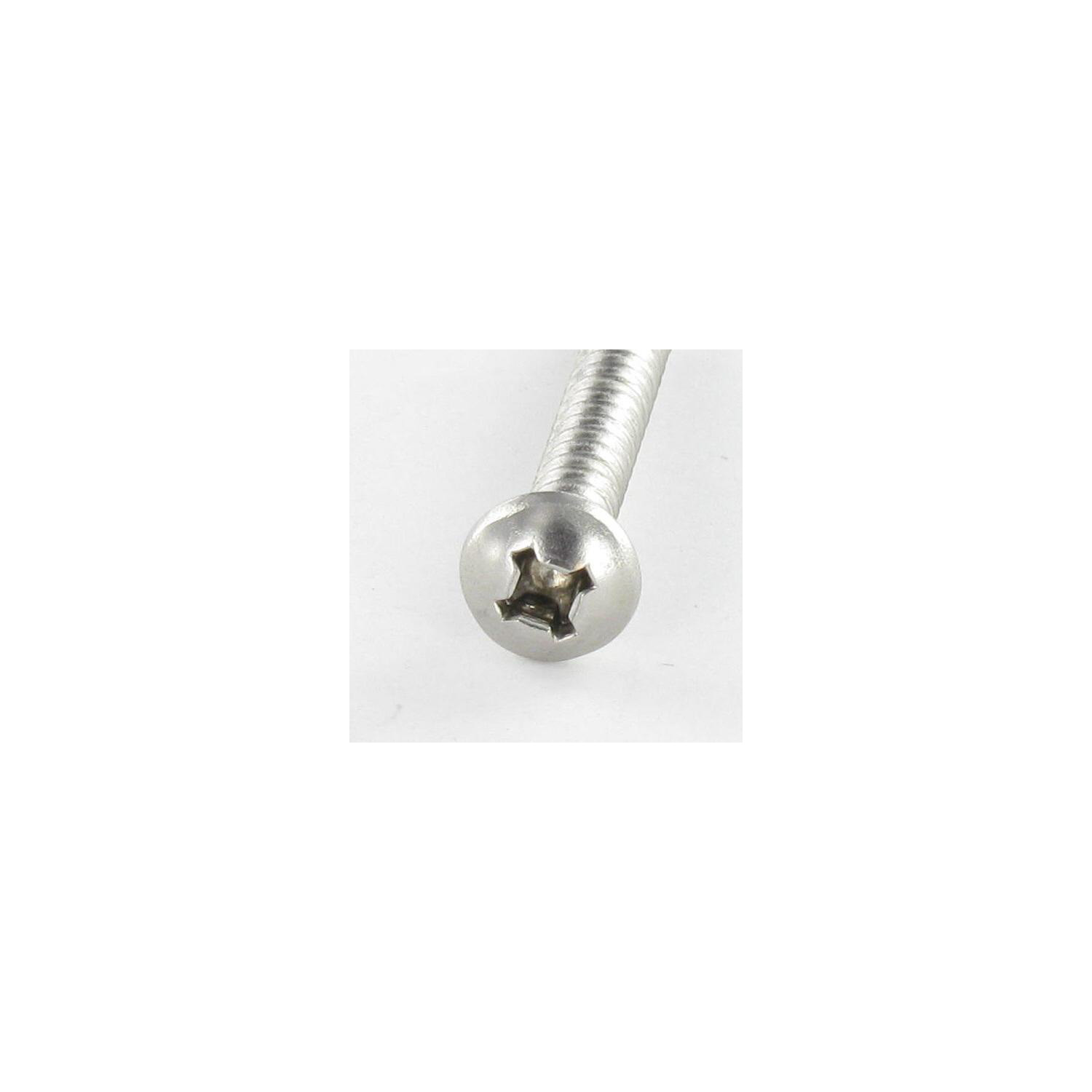

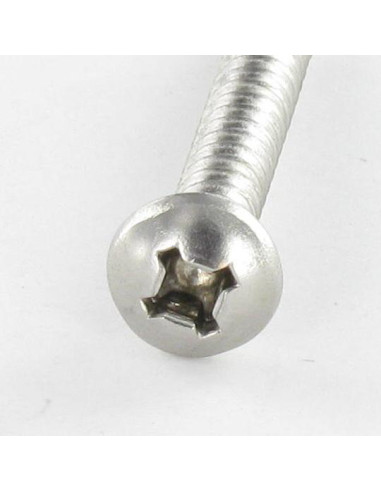

Vierkant PHILLIPS
Afmetingen boorgat
SLEUTEL van 8
Subproductfamilie
Cilinderkop
Norm
DIN 7504 N + CARR/PH,VS3124
Montagedruk (N)
250
Rotatiesnelheid (tpm)
1800-2500
Minimaal breekkoppel (N.m)
6.5
Maximale dikte om te bevestigen
8.7
Gewicht per stuk
2,64 GR
582 stuks
3663072154179
Zelfborende schroef cilindrische kop Phillips vierkant 4.8X19 SQ2+PH2 RVS A2
Diameter = Klasse 4.8, Lengte = 19, Materiaal = RVS A2, Boorgat = Vierkant PHILLIPS, Norm = DIN 7504 N + CARR/PH,VS3124, Afmetingen Boorgat = Sleutel 8


Maatvoering (in mm)
Spoor nummer 6 7 8 10 12
Diameter 3.5 3.9 4.2 4.8 5.5
kop diameter 6.9 7.5 8.2 9.5 10.8
Kop dikte 2.6 2.8 3.05 3.55 3.95
PH 2 2 2 2 3

ANDERE REFERENTIES : 3617500212085 VISI004 B0136 3663072154179
