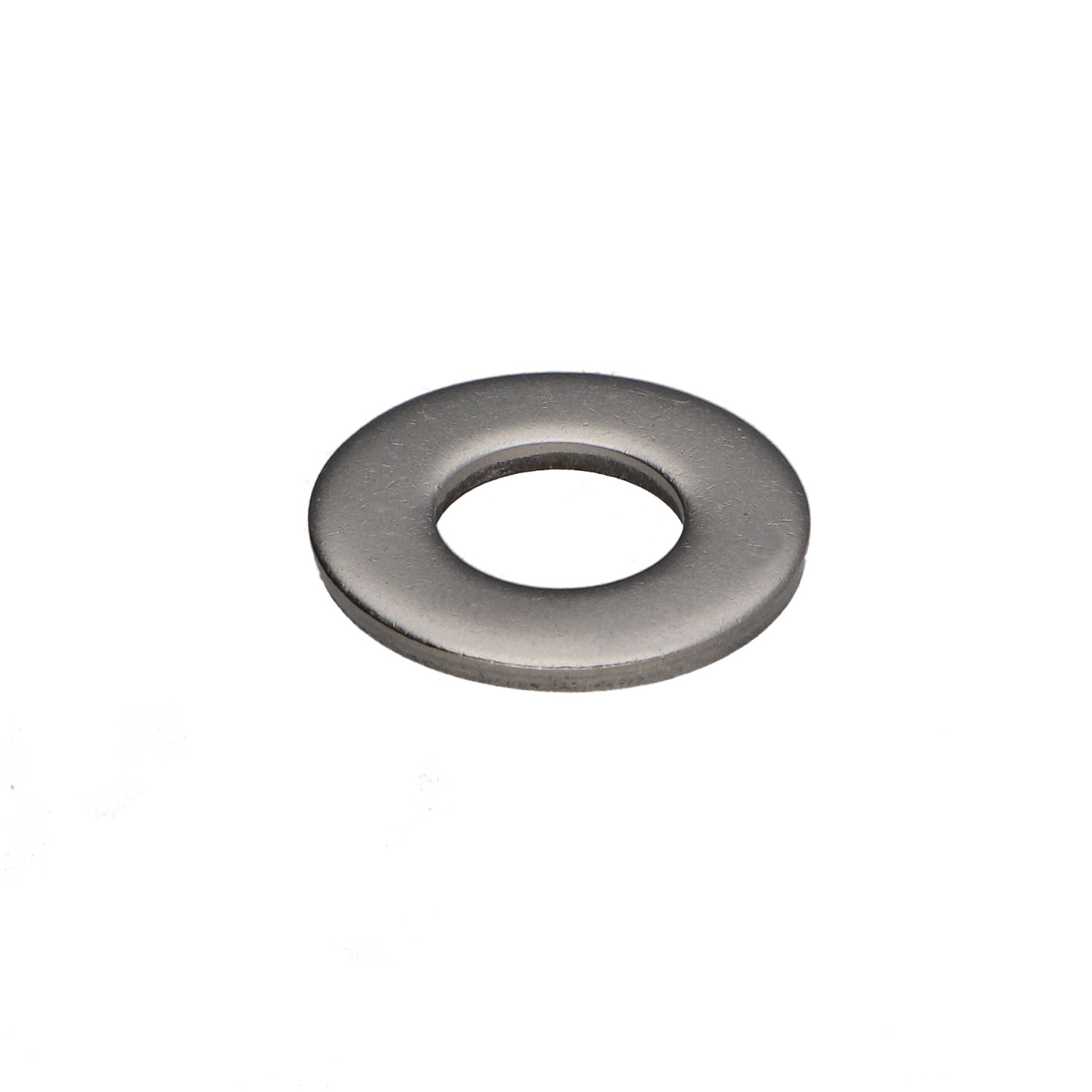

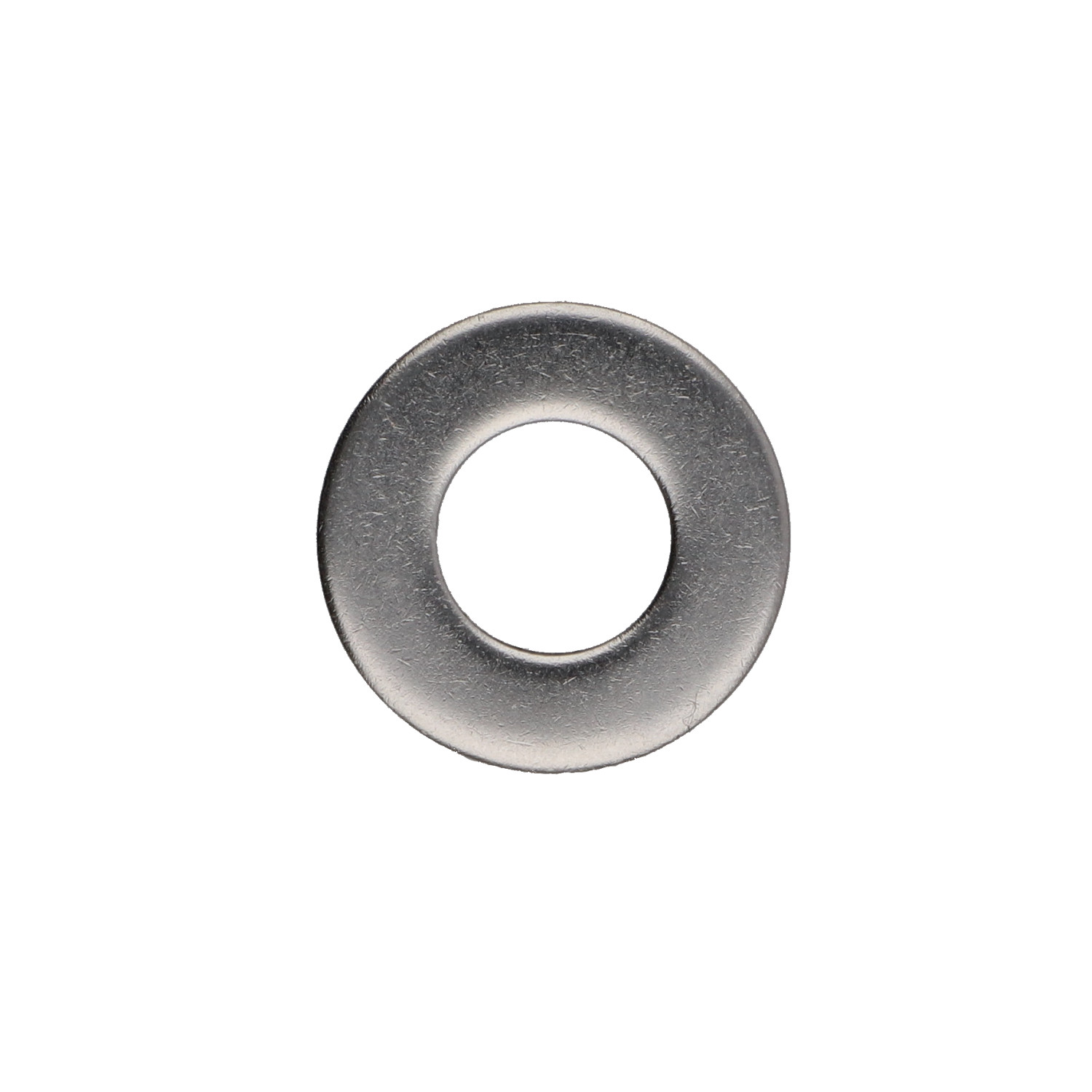

Sluitring plat M12X27X2.5 M RVS A2
Dikte = 2.5 MM, Materiaal = RVS A2, Norm = NFE 25513,VS-NFE25513 CIJFER C

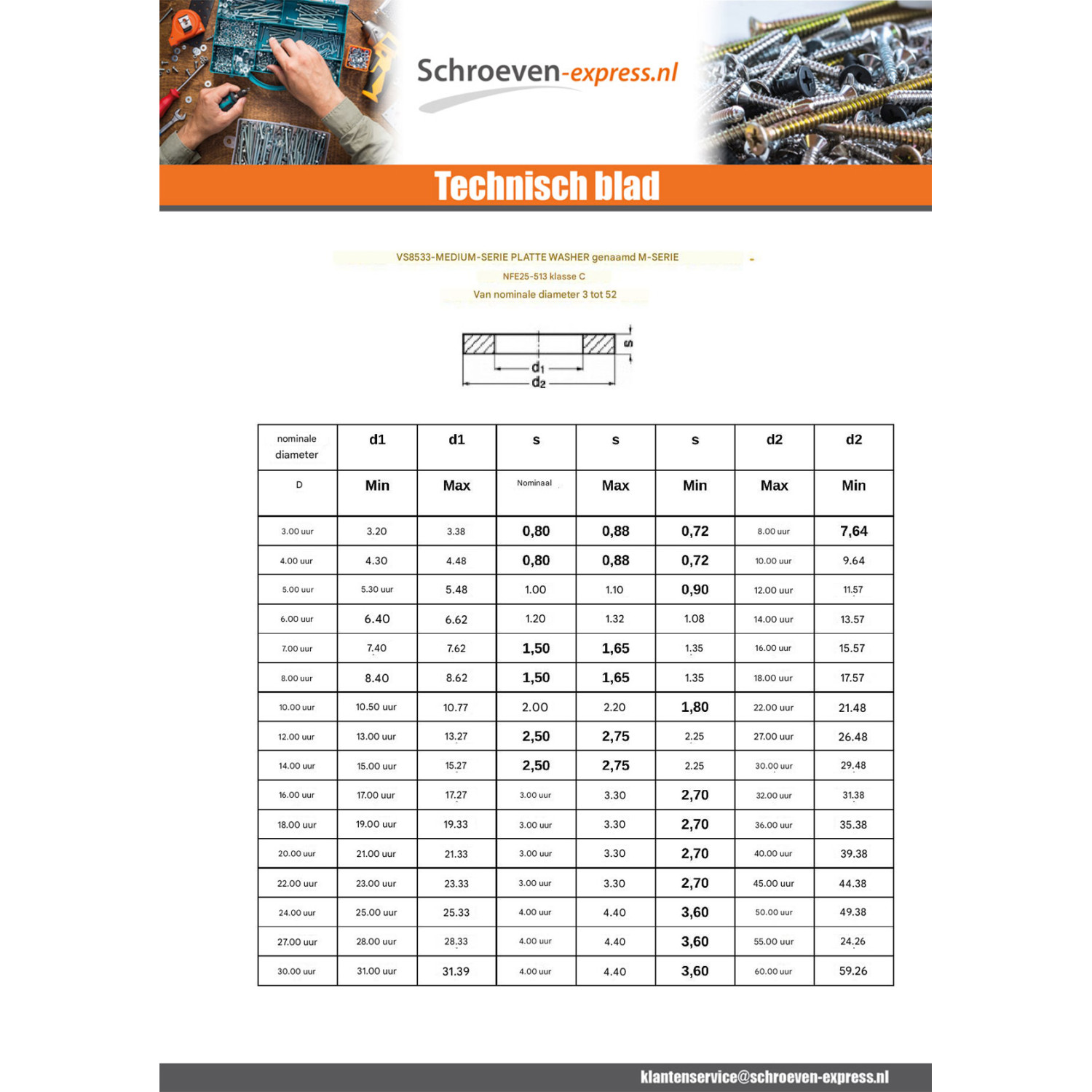

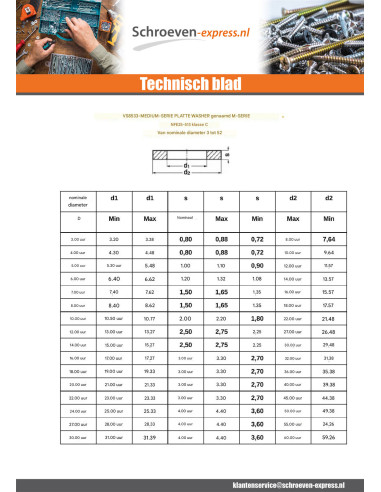

Maatvoering (in mm)
| Diameter |
M3 |
M4 |
M5 |
M6 |
M7 |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
M39 |
M42 |
M45 |
M48 |
M52 |
| Interne diameter |
3.2 |
4.3 |
5.3 |
6.4 |
7.4 |
8.4 |
10.5 |
13 |
15 |
17 |
19 |
21 |
23 |
25 |
28 |
31 |
34 |
37 |
40 |
43 |
46 |
50 |
54 |
| Buiten diameter |
8 |
10 |
12 |
14 |
16 |
18 |
22 |
27 |
30 |
32 |
36 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
85 |
90 |
100 |
| Dikte |
0.8 |
0.8 |
1 |
1.2 |
1.5 |
1.5 |
2 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
4 |
4 |
4 |
5 |
5 |
6 |
6 |
7 |
7 |
8 |
