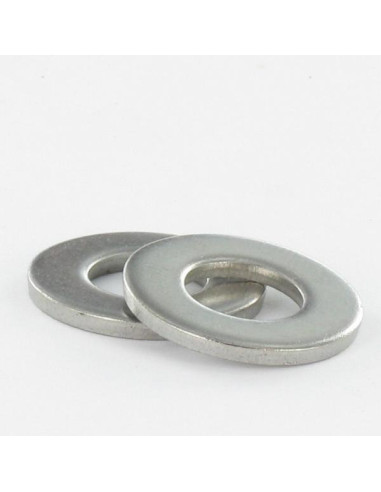

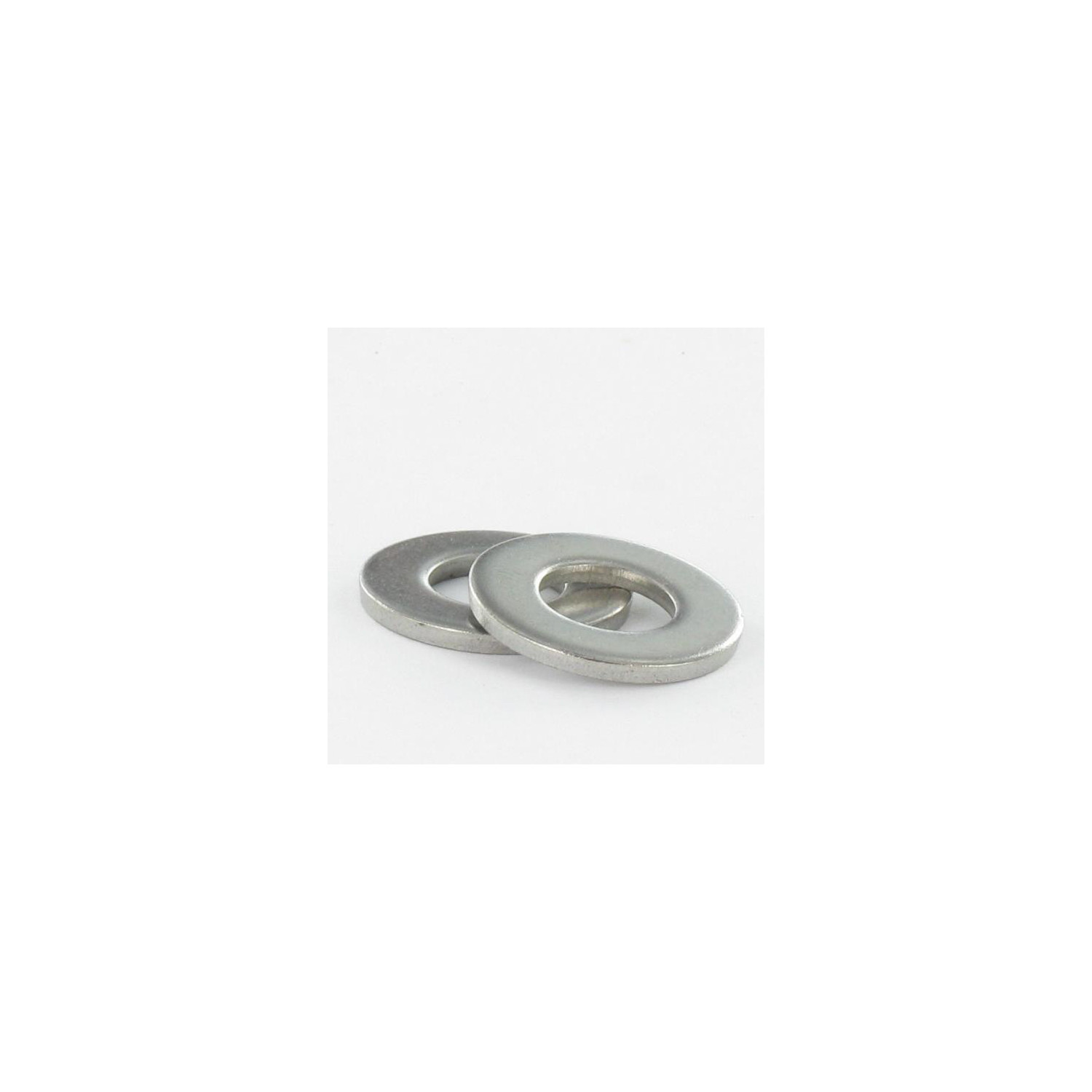

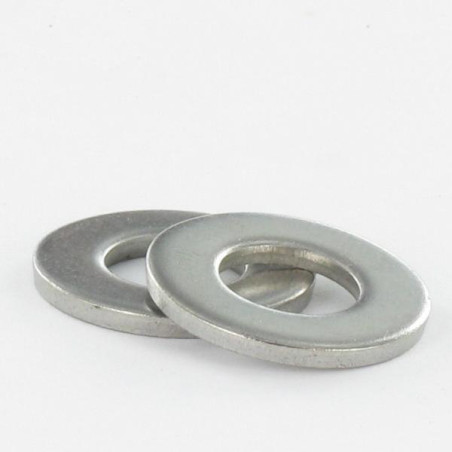

1 x Sluitring plat M20X40X3 M Wit verzinkt staal

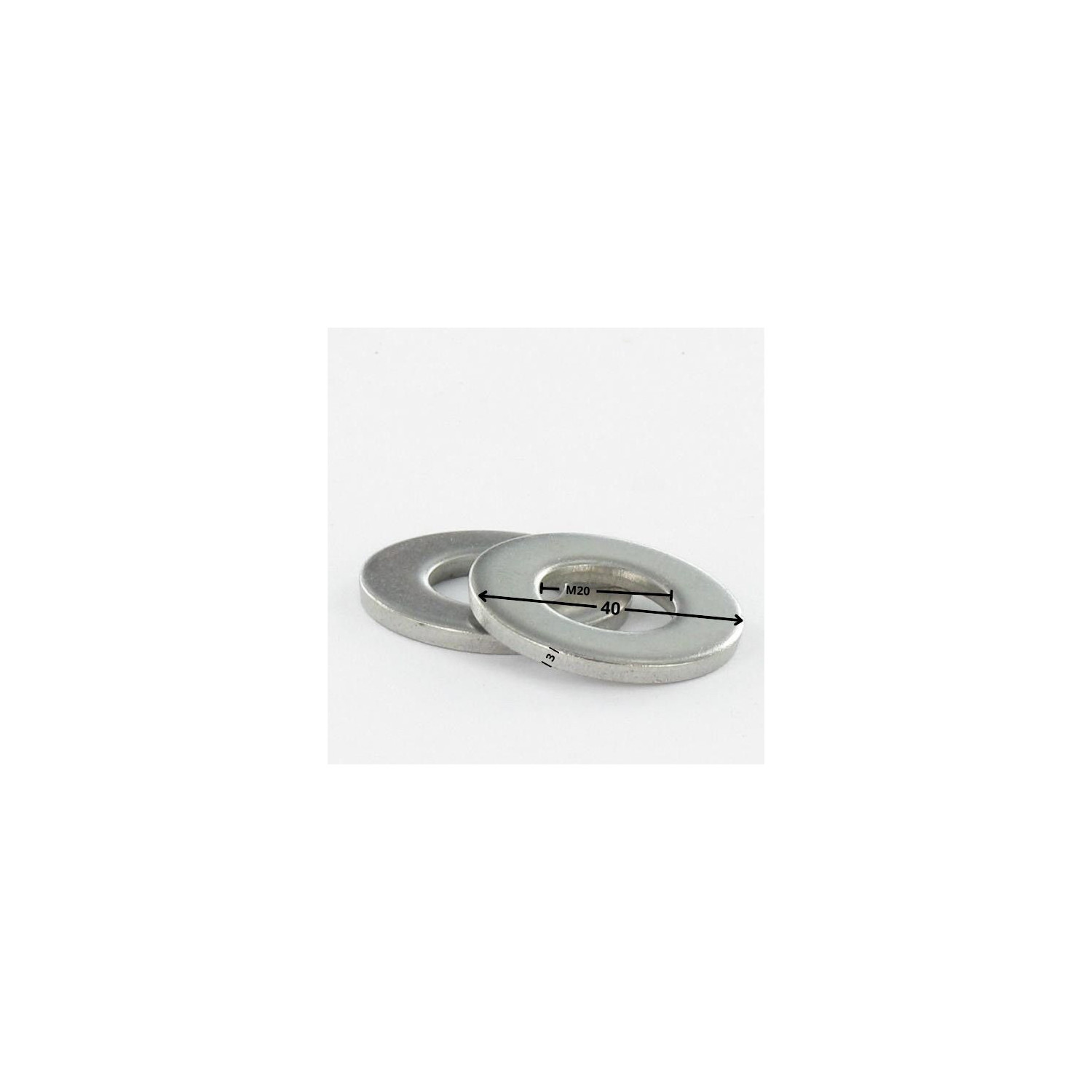

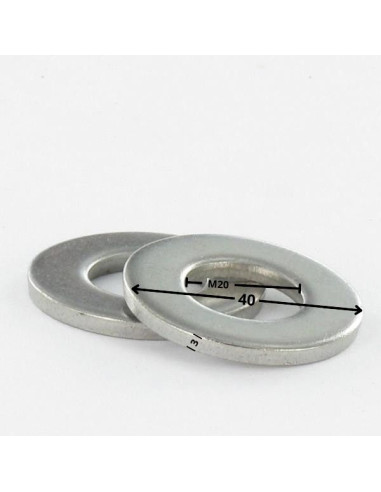

Sluitring plat M20X40X3 M Wit verzinkt staal
Dikte = 3 MM, Oppervlaktecoating = Wit zink, Materiaal = Staal, Norm = NFE 25513,VS-NFE25513 CIJFER C, Beroepen = Agrarisch

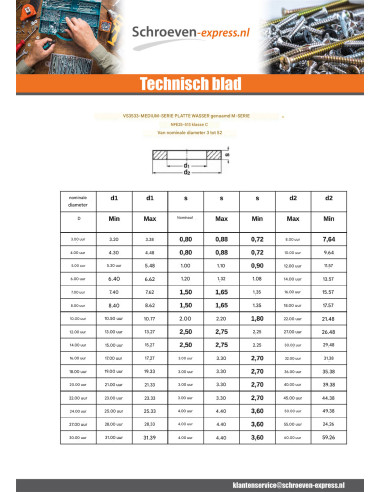

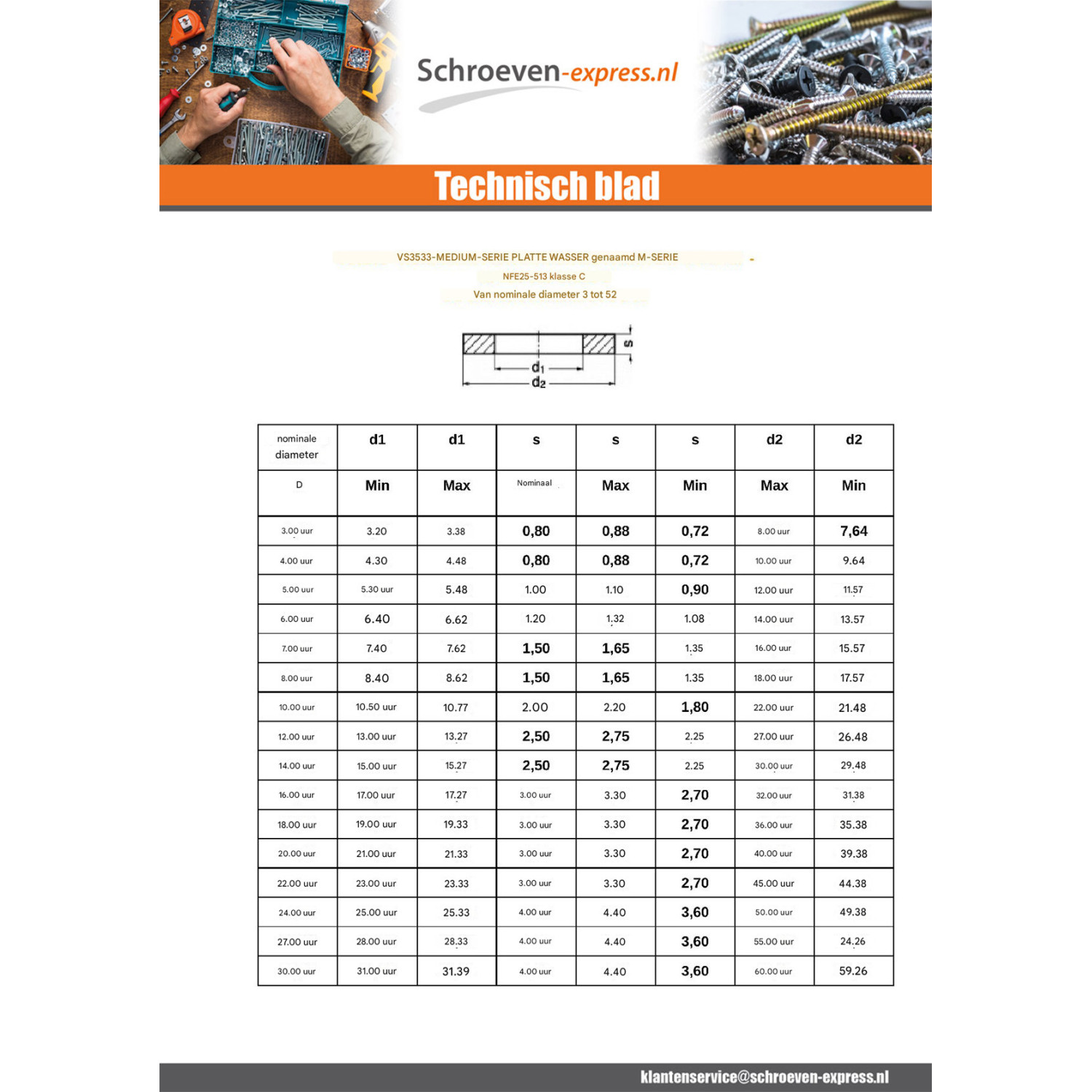

Maatvoering (in mm)

Diameter	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36	M39	M42	M45	M48	M52
Interne diameter	3.2	4.3	5.3	6.4	7.4	8.4	10.5	13	15	17	19	21	23	25	28	31	34	37	40	43	46	50	54
Buiten diameter	8	10	12	14	16	18	22	27	30	32	36	40	45	50	55	60	65	70	75	80	85	90	100
Dikte	0.8	0.8	1	1.2	1.5	1.5	2	2.5	2.5	3	3	3	3	4	4	4	5	5	6	6	7	7	8

ANDERE REFERENTIES : 012000012014 172140 R000233 RONPLM20Z8 506683 320052 A190031 14420 3-0232 61995 310570 90030020 CS20Z VIROND21X40X RM20Z RZ20 RONPLM20J 2345006 RONDELLE*MU* MECRONM20-01 LD021014 130535 ZA015 TR000233 V003106 4090028 7.800396 008584 001763-001 0571898 BR2404126 RT2040 525020 64201200 AR01782 RON73026 V00086 R.M20 2BORP20Z FIX000543 2404120 14074 FER-ROND-20/ QUBV-0014 ACH0367 VISS00054 M20 31420000 500219 0000609 7001-0144-A 6000-0275 3702005 A7R*01*20*2 PLATE20 0200356 268170 001253200 7010 1408000005 ASFRP20 1712 7041950 304501 1511-000015 RM20 X05380 ART000469 25004005 003026 0003026 065070 RONSPL20 VI1083 ROPLZI20 52720100 0009 M20 25513MM20AZ AN 009 552206 0009 VIROND21X40X 3692 A03070210 01127247 36021040 RP20 990199030010 CS79111 753175CF 753175CF 0BRPZ20 RP20 123001011 123001011 181036029 123001011 0002993 3-0232 236828 RP20 9908020 RPM20AZN 041120402 AERONDELP21M RZ20 M02299 39418 A0613635 CO9RONPLAMU2 4006408 1004009 FRON210 131013 0601020 CO9624009 RM20Z RONMU20Z A004301 LN03 9 220200 5650093 2204-675 vs-rp20m 1352016 P004294 150124 a002367 52300171 DS1502020 0BRPZ20 5650093 2180122040 172140 110281 AJP20E VRZ20 RPD20Z RP20M SI00835 12736 RA20 ASSRON20003 FR0006 MC5437 RON20PA QRONEZPLAM20 MU20 LM-M20/40/3. S226DF A3012727 RZPM20 VI1031A 8173 19020001 VRZ002000 MVISACI00066 16-180302002 M78431200 0400134 519-0015-6 1001159 A01419 b410011 RONDELLE20 FR0006 RONDELLE*ZC* FR0006 1 06031020 a002367 RON20 A11011212010 TR000233 1-001-05-35 CO600018 900047 RONDELLE*ZC* 0601210 4845 4845 999233 QURON017 V03-031 10460 104138 3663072058330
