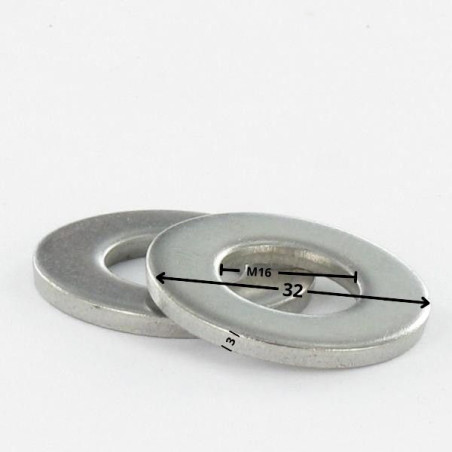

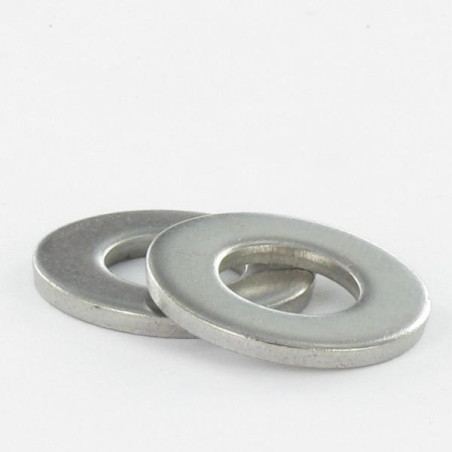

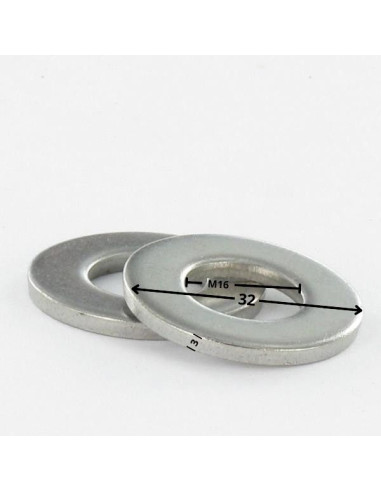

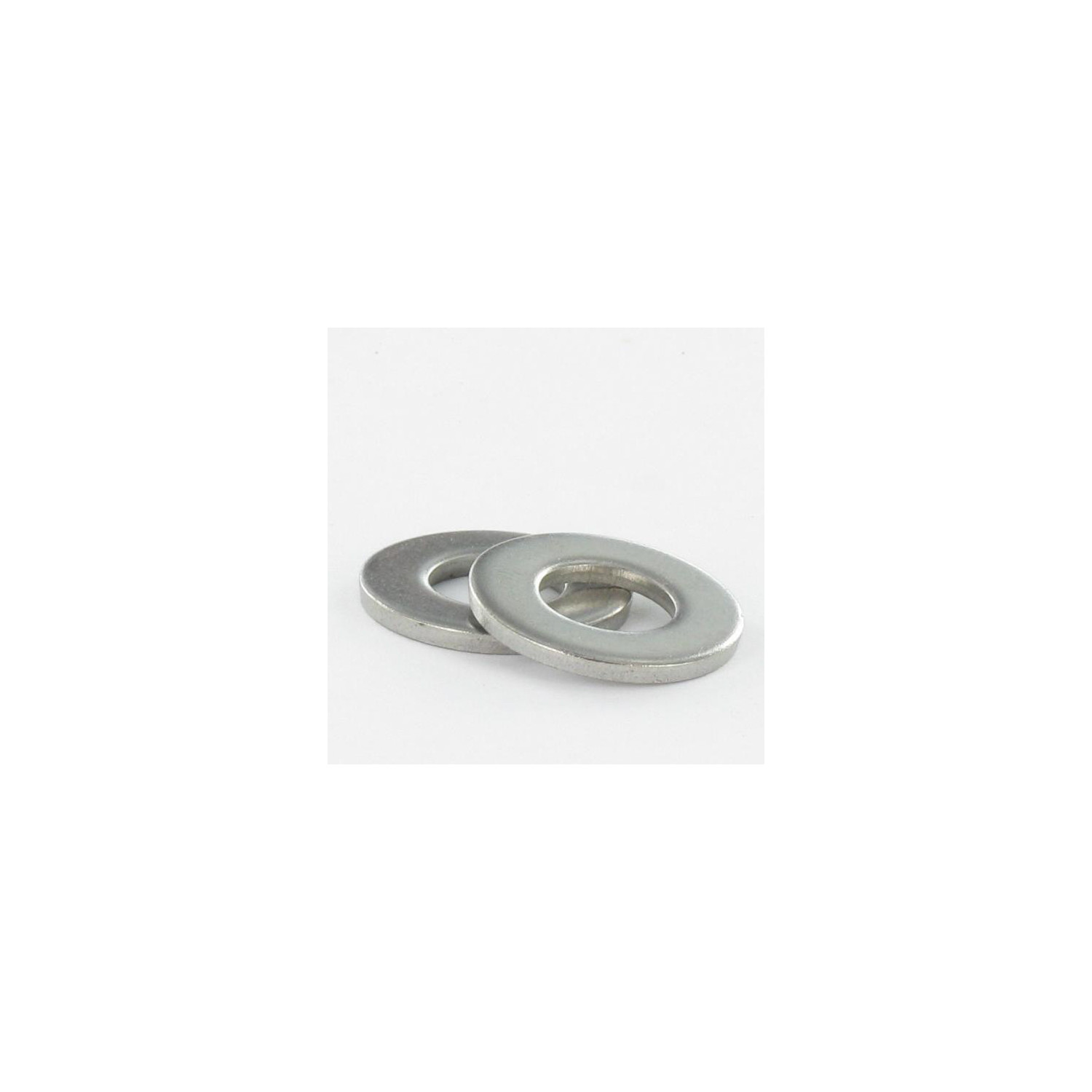

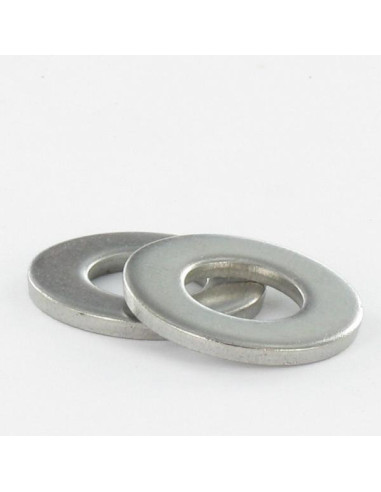

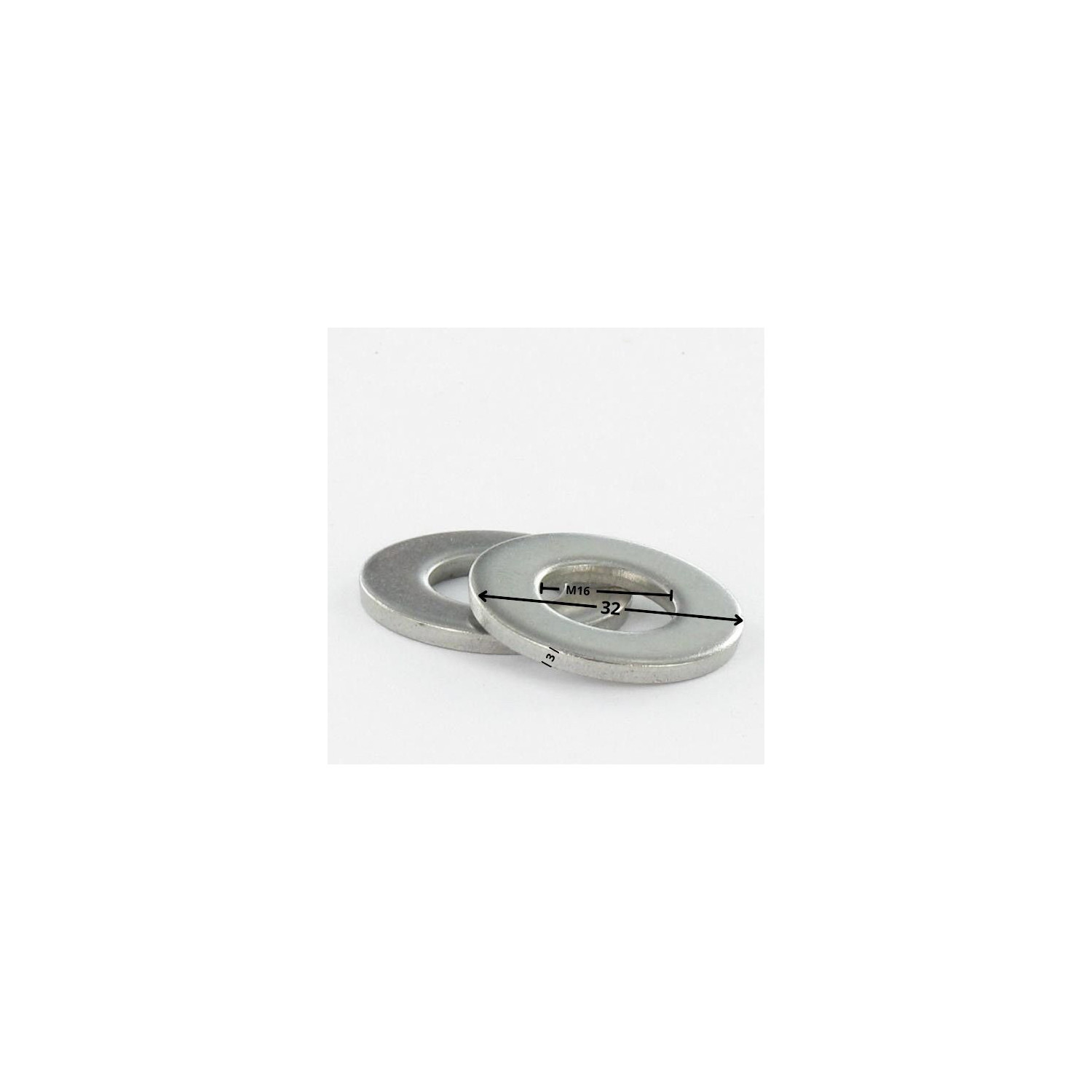

1 x Sluitring plat M16X32X3 M Wit verzinkt staal

Sluitring plat M16X32X3 M Wit verzinkt staal
Dikte = 3 MM, Oppervlaktecoating = Wit zink, Materiaal = Staal, Norm = NFE 25513,VS-NFE25513 CIJFER C, Beroepen = Agrarisch

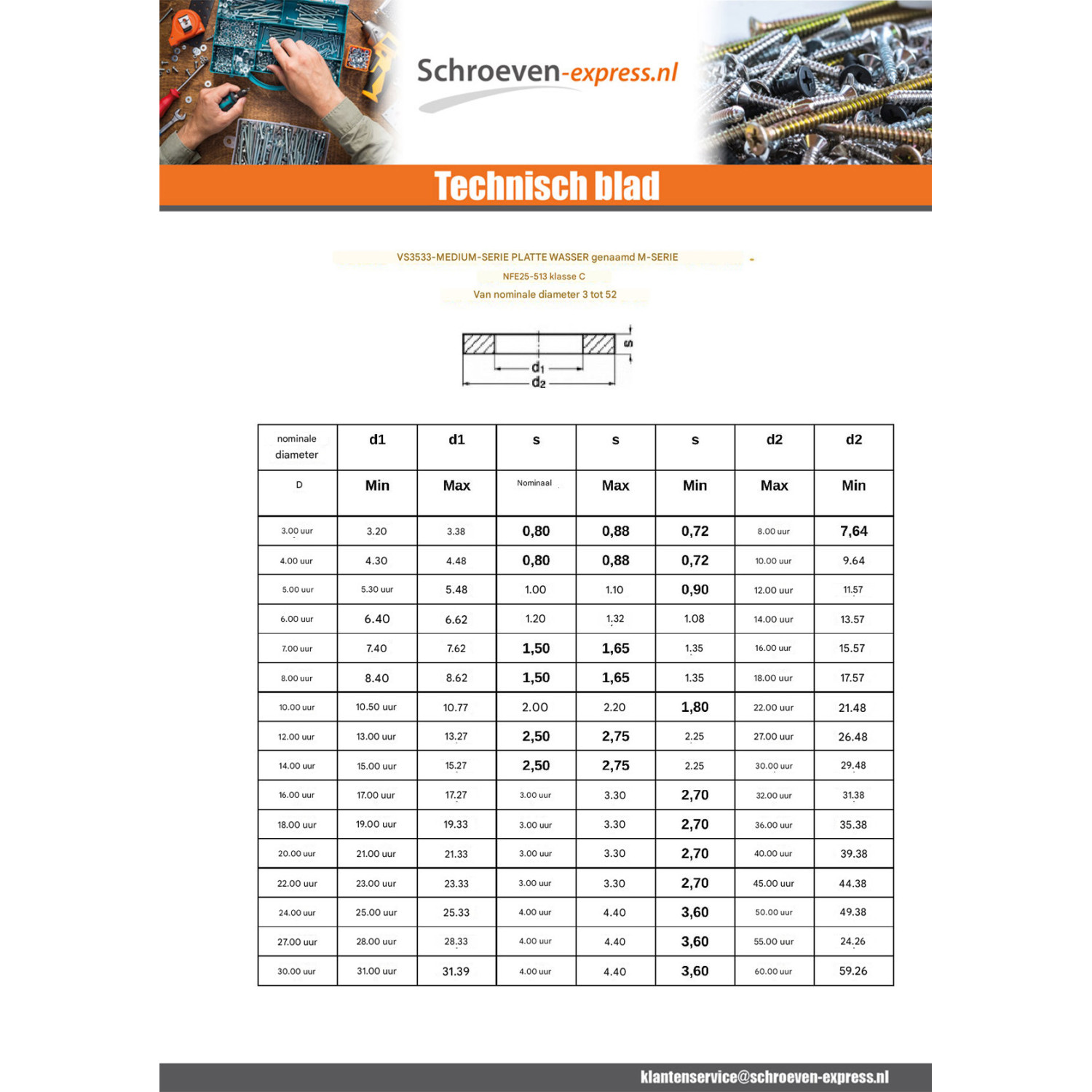

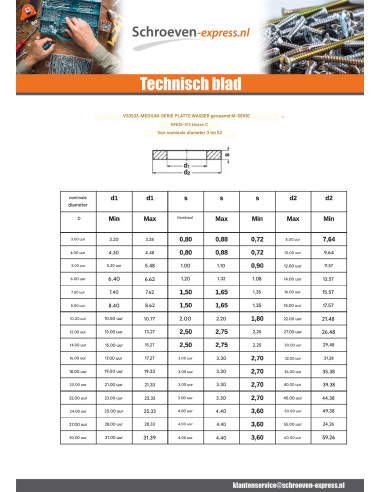

Maatvoering (in mm)

Diameter	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36	M39	M42	M45	M48	M52
Interne diameter	3.2	4.3	5.3	6.4	7.4	8.4	10.5	13	15	17	19	21	23	25	28	31	34	37	40	43	46	50	54
Buiten diameter	8	10	12	14	16	18	22	27	30	32	36	40	45	50	55	60	65	70	75	80	85	90	100
Dikte	0.8	0.8	1	1.2	1.5	1.5	2	2.5	2.5	3	3	3	3	4	4	4	5	5	6	6	7	7	8

ANDERE REFERENTIES : 012000011614 R00231 RONDPLM16Z8 505513 3VRPM90M16Z 0800543 A190029 YRON16Z 14281 RDLZ16 ROND_P_M16 3-0229 2VIRON033 3VRP90M16Z V010163200 1 903592 rm16z 310566 90030016 CS16Z 00929 RZ16 RONM16 RONPLM16J 170040008 10210895 0538034 0407 16 VSRONPLAZ163 ROND.MU16 LD013701 130531 R00231 A6336 2530129 4090006 MBH3583 RDM16X32ACZG 7.800392 11564 001762-001 BR2404125 RT1632 A01023 1 V31 002218 277 RONDELLEM16 94020016 1611 RON73022 101389 277 AC001265 3VIS1RO004 3005016 R.M16 2BORP16Z fix000277 2404116 bron0005 AF230724 RDL-GA016R1 ACBBM16 40010816 QUBV-0039 RDLM16 2404116 9A-1507006 AN RO16 52020 235IK0016 VRP16ZI 77001.16.32 091779 MAZ16 S00756 5s0401035 500040 VR16 VR16 VR16 7001-0449-A 6000-0273 1820336 3740097 VSE35330016 A7R*01*16*2 FRT.600.0085 mz16 1606000537 ARROND16 0200761 RTAZ0008 23601632 268150 7209 5004-16 103021007 100 277 1710 6040024 304510 1511-000013 05123 OR00616410 132ZROM16 501375 0003022 568024 ART000467 2G005859 00009461 0003361 0003022 065069 ROPLZI16 52716100 0084 p4508200 M16 6ROND0116 25513MM16AZ C.81.M16 0084 0084 MV4004 4735 A03070208 RON16X32 01127240 R140560 RP16 CS79109 753175CD 753175CD QUIN12248 0BRPZ16 753175CD (RMM16AZ) RP16 123001009 123001009 123001009 123001009 123001009 0002991 R612-016 3-0229 236826 RP16 010-03-03-00 V010163200 9908016 103021007 C30009013 0100831 C30009013 RZ16 M00472 0300719/100 MNR11059 RONDEL.AC.16 71RONDELLE16 CO9RONPLAMU1 4006402 1004007 0601016 CO9624007 056009 RONMU16Z LN03 8 200310013200 RONMU16Z 50961 12374 2201998 2204.099 P004293 V3016431 150120 A002357 523200170 DS1502016 SC601400 0BRPZ16 RMU16 501732 0528104 171630 110279 AJP16E VRZ16 005181 S06927 155874-CH S06927 SI02095 12734 NM16ZN RA16 ASSRON16002 FR0085 RON16PA QRONEZPLAM16 RPL016 MM0253677 100 1000163 mu16 OFIX200429 25TIGRON16 LM-M16/32/3. A3013215 RZPM16 V010163200 VI1029A 08166 19016001 2109069 VRZ001600N 16-180301605 RDL-GA016R1 ROND.MOY.000 0400291 V010163200 1001157 143608 RONDELLE16 52207 FR0085 06031016 FR0008 A002357 VZ034 05717561 ROND_ZI_16x3 RON16 CO600207 1710 41000380010 7958/1/3 FIX-RPM-16 0601208 AN 11585256 ART-1128 1140248 V03-029 903592 A00018 AN CA10-00312 AN 104135 39001730 241016 103031 FIX000277 ROND_16 V010163200 3663072058279
