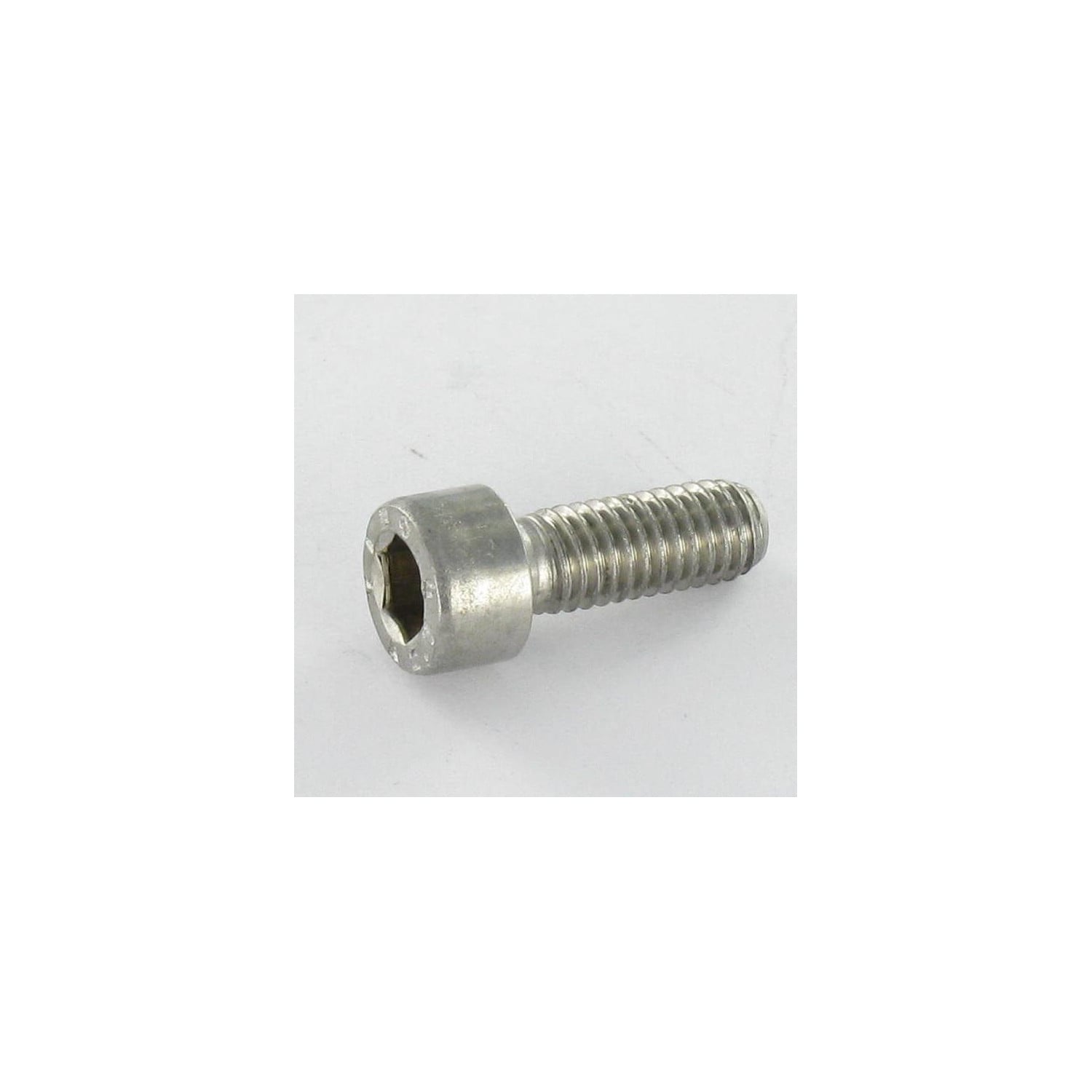

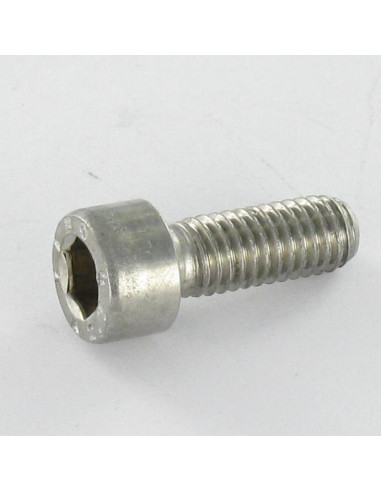

Metalen schroeven RVS A2 CHC BTR sleutel van 6 M8X16 volledige draad
Diameter = M8, Lengte = 16, Materiaal = RVS A2, Steek = Standaard steek 125, Boorgat = Zeshoekig hol, Norm = DIN 912 ISO 4762, Producten = Metalen schroeven, Afmetingen Boorgat = Sleutel van 6
Maatvoering (in mm)
| Diameter |
M1.4 |
M1.6 |
M2 |
M2.5 |
M3 |
M4 |
M5 |
M6 |
M7 |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
M42 |
M48 |
M56 |
| Sleutel van |
1.3 |
1.5 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
6 |
6 |
8 |
10 |
12 |
14 |
14 |
17 |
17 |
19 |
19 |
22 |
24 |
27 |
32 |
36 |
41 |
| kop diameter |
2.6 |
3 |
3.8 |
4.5 |
5.5 |
7 |
8.5 |
10 |
12 |
13 |
16 |
18 |
21 |
24 |
27 |
30 |
33 |
36 |
40 |
45 |
50 |
54 |
63 |
72 |
84 |
| Kop dikte |
1.4 |
1.6 |
2 |
2.5 |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
22 |
24 |
27 |
30 |
33 |
36 |
42 |
48 |
56 |
| Onderdeel met schroefdraad |
14 |
15 |
16 |
17 |
18 |
20 |
22 |
24 |
26 |
28 |
32 |
36 |
40 |
44 |
48 |
52 |
56 |
60 |
66 |
72 |
78 |
84 |
96 |
108 |
124 |
