1 x Sluitring Grower voor Schroeven M8 Wit verzinkt staal

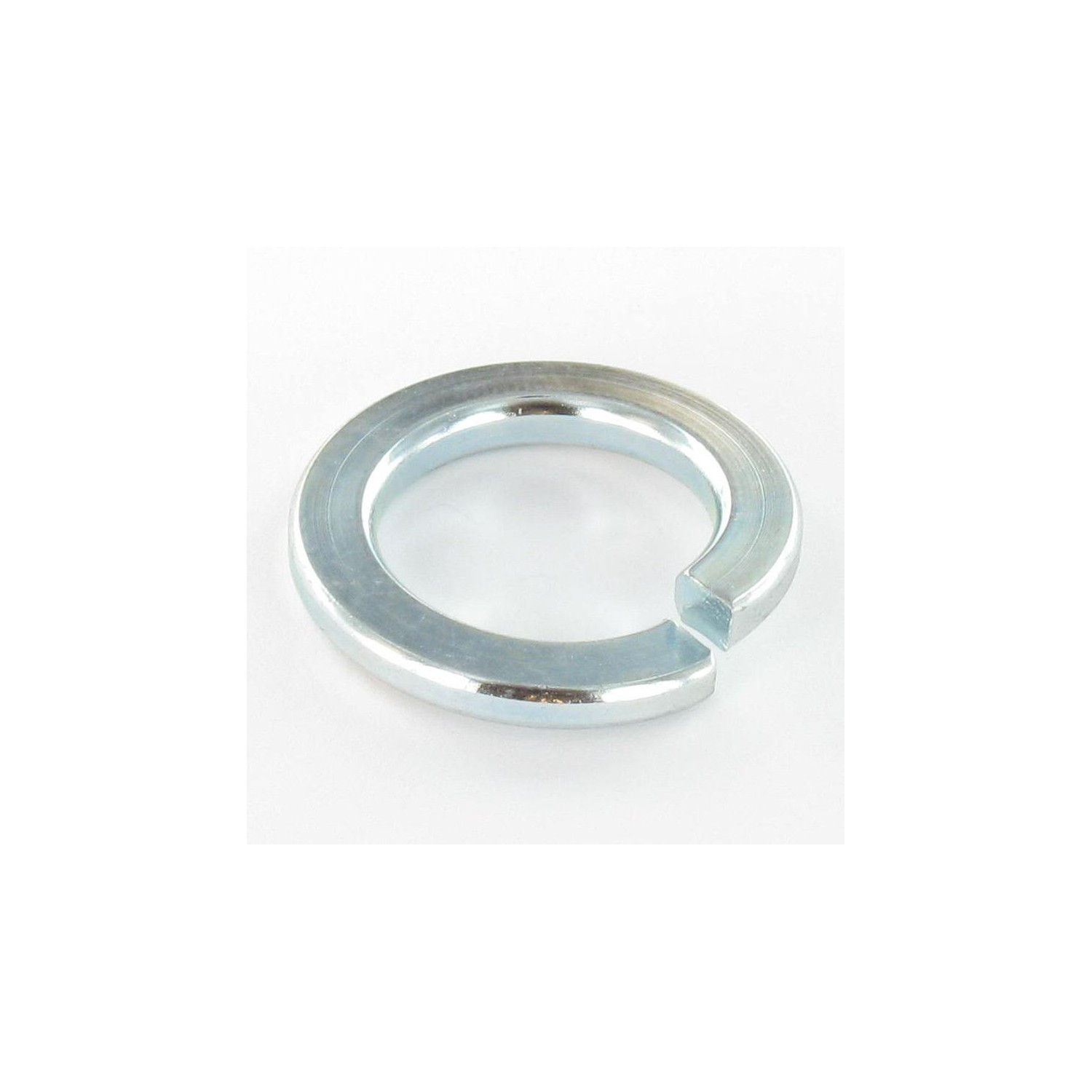

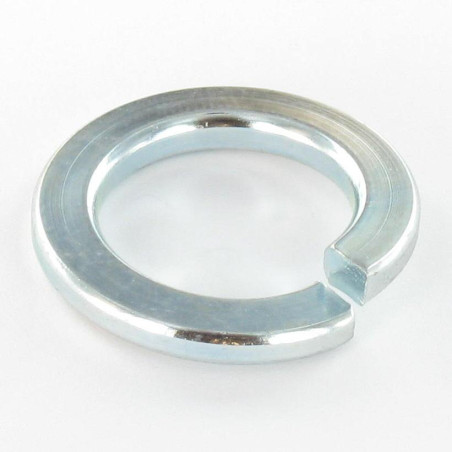

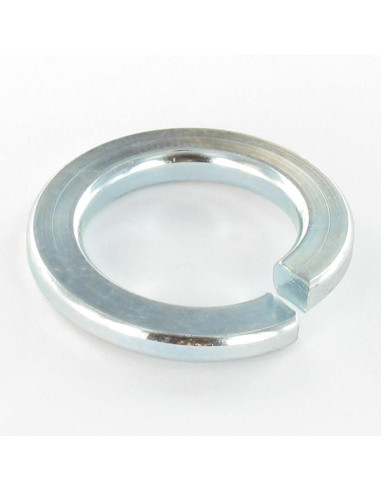

Sluitring Grower voor Schroeven M8 Wit verzinkt staal
Diameter = M8, Dikte = MM, Oppervlaktecoating = Wit zink, Materiaal = Staal, Norm = DIN 127 B

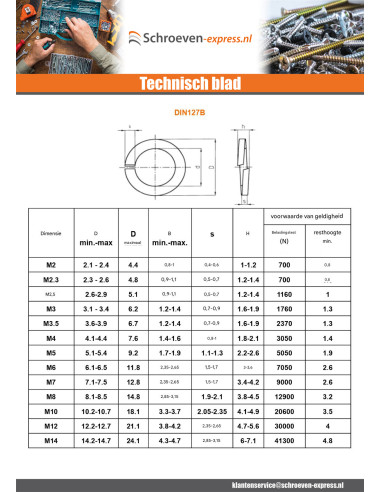

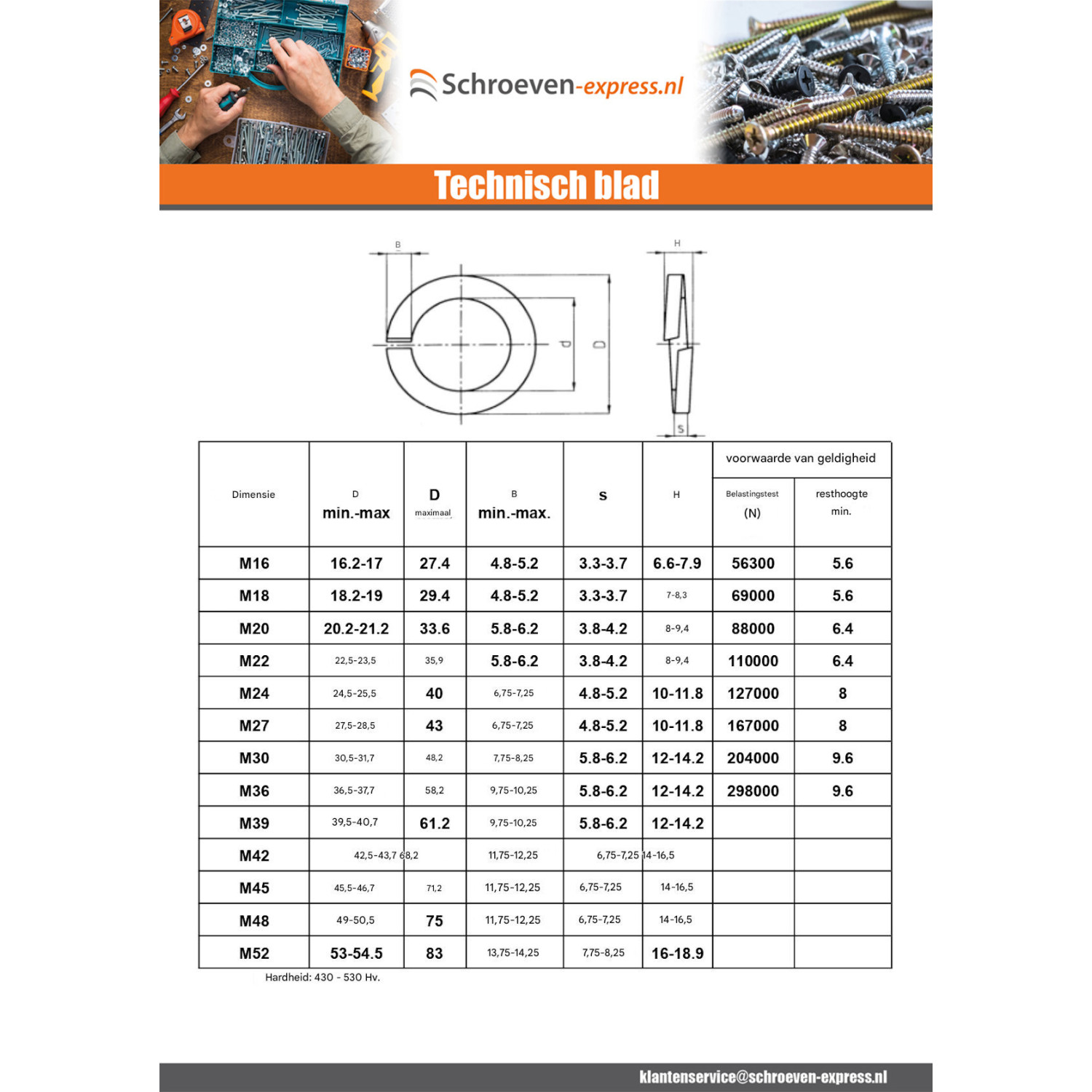

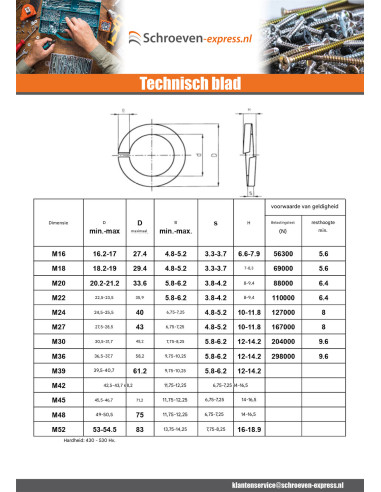

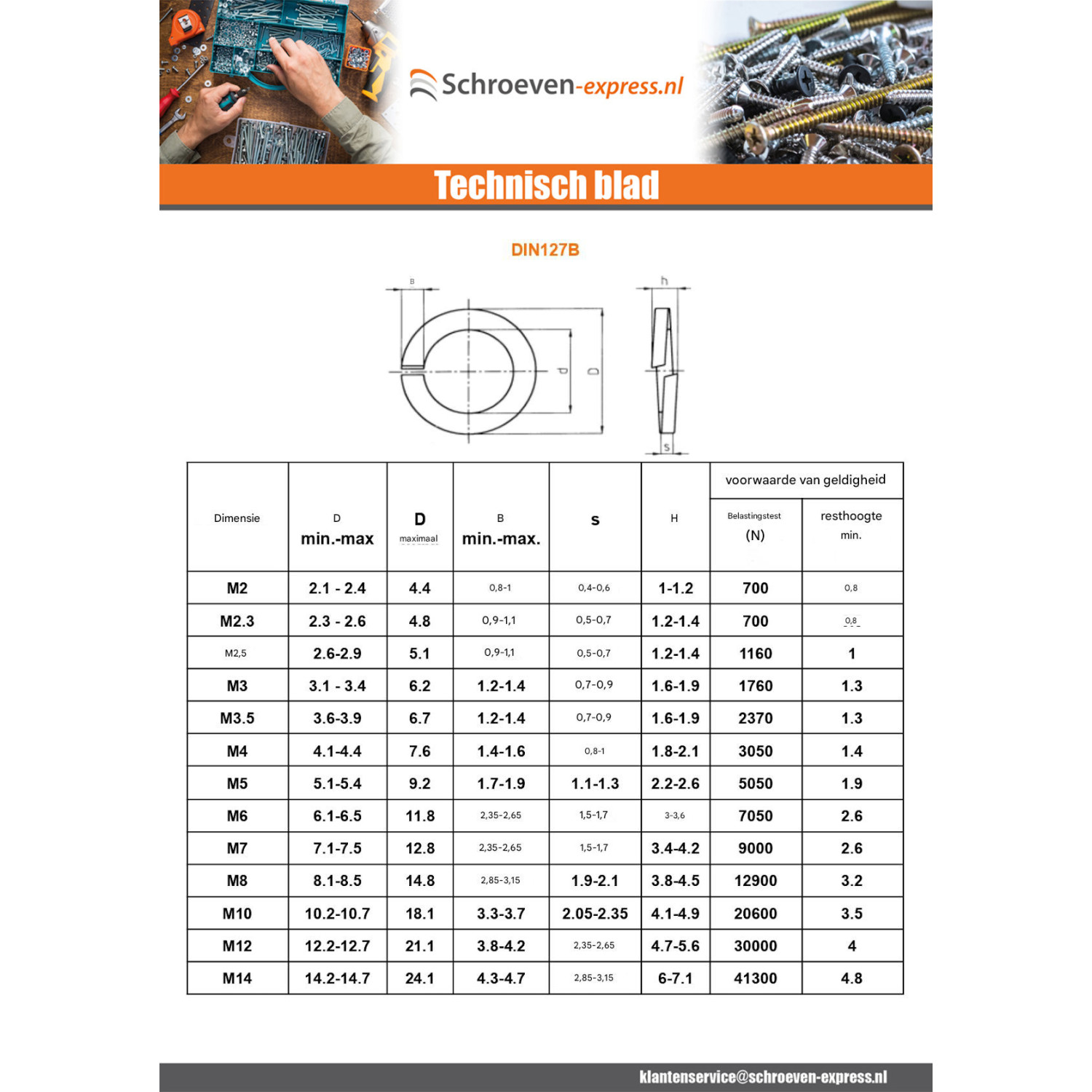

Maatvoering (in mm)

Diameter	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M24	M27	M30	M36	M39	M42	M45	M48
Interne diameter	3.1	4.1	5.1	6.1	7.1	8.1	10.2	12.2	14.2	16.2	18.2	20.2	24.5	27.5	30.5	36.5	39.5	42.5	45.5	49
Buiten diameter	6.2	7.6	9.2	11.8	12.8	14.8	18.1	21.1	24.1	27.4	29.4	33.6	40	43	48.2	58.2	61.2	68.2	71.2	75
Dikte	0.8	0.9	1.2	1.6	1.6	2	2.2	2.5	3	3.5	3.5	4	5	5	6	6	6	7	7	7

ANDERE REFERENTIES : 0180000108248 380008 ROND GRW M08 C08000068 1000280 6204567 90010008 RW8 22030004 OQR08WCAD RONDELLEGROW VI02791 RGM08Z 102287F 0234 070C000052 DIN127FORMEB KACC 217A 4120001 RONDGR8 04152400 5170141 5170141 002068-008 A01004 20320 1 002292 RONDELLEM8GR ar01064 1261 101592 AC001166 3VIS1RO008 3005004 QU18017 1807008 3VNROWZM08 VIRW08A 1261 1002303 A3012542 RDGM8 9A-1507051 900262OA33Z RG8 8000150ZB0 81547 204228 S4080 5s0501047 46512114 270016 2826209 6000-0392 ZQROW8AZ 14022416 VIS0066 RG7980D8BL 1460101080 901014123 WZ8 267920 1408000029 5041-08 1698 401353009900 C0406 2g005985 0002855 11399051 ROGROWZI08 52708300 RGR-08-Z 5453 5453 L26805 W08 101956 203608 300099 25515M8AZ 0196 06RGAZI0008 1807008 37000.080.00 4127 RLG08X2.5Z K300450801 KGO1277561 01127793 RG8 05301 3532 RW08 4307 123A15428 123A15428 1235A15420 0005083 05301 236851 010-03-07-00 AN 4043100 9908073 MP022089 RZO08 M00762 2005790000 QRGROWER C09RONGROWER PMM0428 RGM08Z 1004063 VRW08 7013120800 71IROND006 300007 RG825N C3090 6620038 1002303 LN03 22 1002303 2204.082 P004506 RONDW08ZG PL303457 OBRGZ08 VI02791 0160500010 30067 18230 4105082 KACC 217A 03T006 701323 201536 FR0068 080811 RR4EB060 W8 0S2706T A3012542 RZW8 270016 V012000800 06RGAZI0008 C0406 B500588 2260521 32909008 KACC 217A 51353 MVISACI00423 RONCR8 16-180300800 04RGZ08 0400114 V012000800 519-031-6 BL22008 003228 1001128 270016 01C17059 QRGROWER 52404 FR0068 11715601 S1012100 QARG_D8 s1012100 RON08G QUI-RONW8-EL 2351201070 0441 8 RM8G 251064 1698 C0406 VN703540C CO83100.015 0601224 611046 1120105 04418 BT757040008 SRONDZW8 WVI02791 RONGROD08AZ 22.083.664 16465 280081s ROND GROW08 6204567 0441 08 5453 604005 020.0236 WZ8 RONGRO08 1460101080 250000004418 9830081 04418 225757 RD000036 RON40008 103055 V012000800 3663072060463
